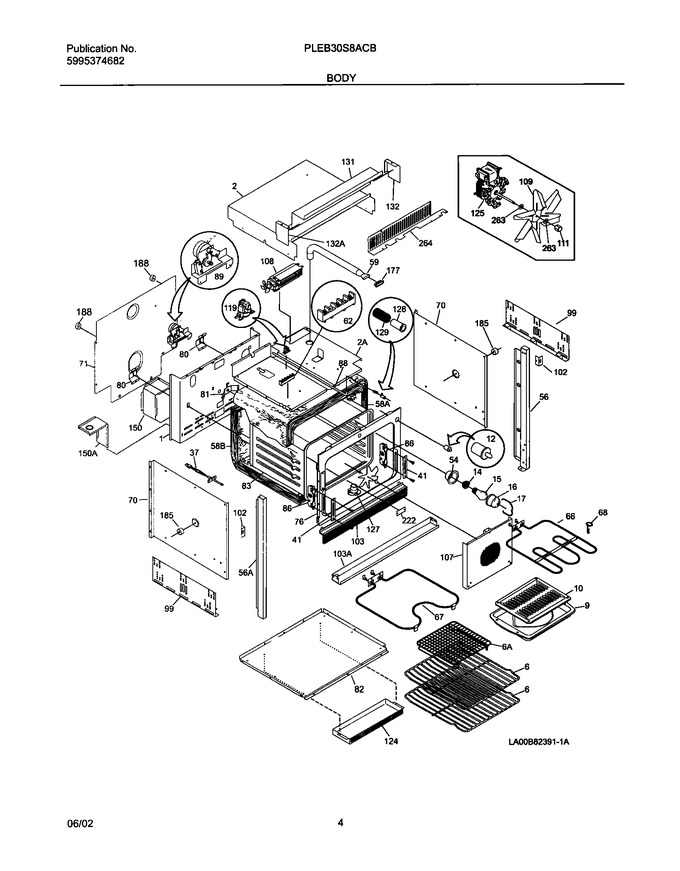

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Panel,main Back		Appelez-nous	-
2	318102101		Shield-oven Top		Appelez-nous	-
6	318345205		Rack,oven   (Replaces: 318025304)			Immediately	$ 138.78
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	318029101		Trim,side ,stainless ,outer,rh		Appelez-nous	-
59	318072504		Tube-oven Vent		Appelez-nous	-
66	318255605		Element,broil ,2750 W   (Replaces: 5303310513)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
71	318071201		Shield-wire		Appelez-nous	-
76	318056202		Front-oven		Appelez-nous	-
80	318192400		Spring,oven				$ 312.53
81	5303320846		Plate,oven Mtg				$ 51.50
82	318072302		Shield,oven Bottom		Appelez-nous	-
83	318089609		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
99	318055420		Support-adjustable				$ 44.73
102	318090900		Support-oven Front,(2)		Appelez-nous	-
103	318028500		Trim,base ,black		Appelez-nous	-
107	318119600		Cover-fan		Appelez-nous	-
109	5303311203		Blade,fan				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
124	318076903		Box-vent		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
131	318102301		Cover-control Housing		Appelez-nous	-
132	318101704		End,cover ,rh ,control Housing		Appelez-nous	-
150	318072204		Bracket,support ,rh		Appelez-nous	-
177	318053800		Gasket Vent		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
188	08007817		Spacer,(6)		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
263	5303322885		Spacer,fan Blade		Appelez-nous	-
264	318143813		Shield,wire		Appelez-nous	-
2A	318071703		Shield-oven Top		Appelez-nous	-
56A	318029100		Trim,side ,stainless ,outer,lh		Appelez-nous	-
58A	318133744		Insulation,oven Wrapper		Appelez-nous	-
58B	318133769		Insulation,oven Back		Appelez-nous	-
6A	318219500		Rack,broiler Pan		Appelez-nous	-
F103	318027700		Trim,base ,stainless ,outer		Appelez-nous	-
F108	318073001		Motor-fan		Appelez-nous	-
F119	318004900		Switch,thermal				$ 60.25
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F125	5303311202		Motor-convection				$ 114.07
F132	318101705		End,cover ,lh ,control Housing		Appelez-nous	-
F14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
F150	318072205		Bracket,support ,lh				$ 72.35
F37	316217002		Sensor,oven Temp Probe   (Replaces: 316111203)			Immediately	$ 61.23
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255006		Element,bake ,3000 W   (Replaces: 5303310512)			Immediately	$ 185.14
F89	318095956		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095934)			Immediately	$ 143.83
NI	318120711		Switch				$ 87.68
NI	318078511		Box & Wires Assy		Appelez-nous	-
NI	5303311207		Tube, Protector		Appelez-nous	-
NI	3015722		Clip-wire		Appelez-nous	-
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
