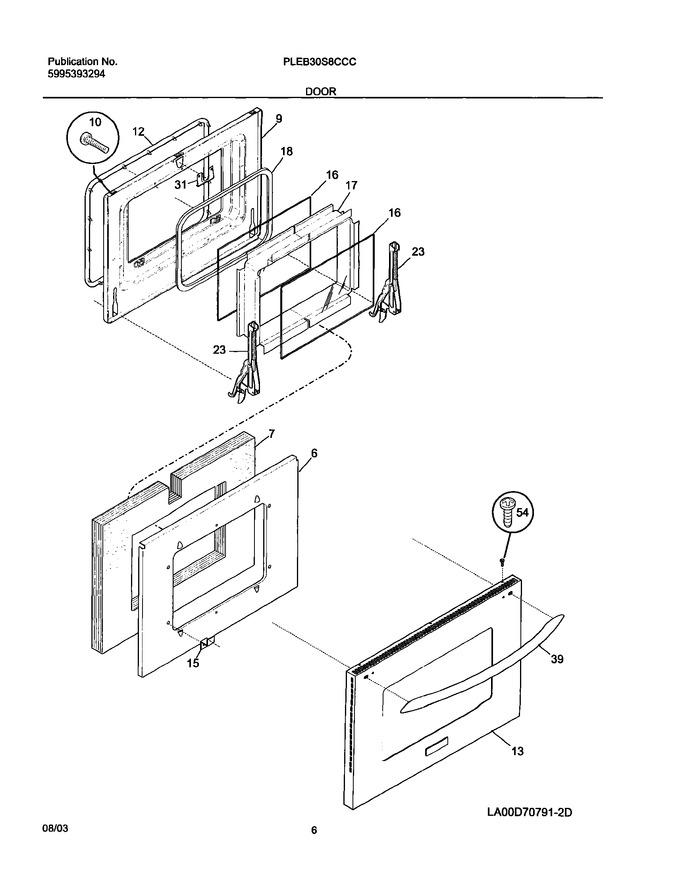

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318056811		Shield-air Wash		Appelez-nous	-
7	318133781		Insulation,oven Door		Appelez-nous	-
9	318048612		Liner,oven Door		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318187933		Stainless Panel,oven Door ,upper Oven ,w/ Glass/nmplt		Appelez-nous	-
15	318172904		Stiffener,glass		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	318197903		Handle,oven Door ,stainless		Appelez-nous	-
54	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303323277		Screw (8-18x13/32)				$ 8.66
