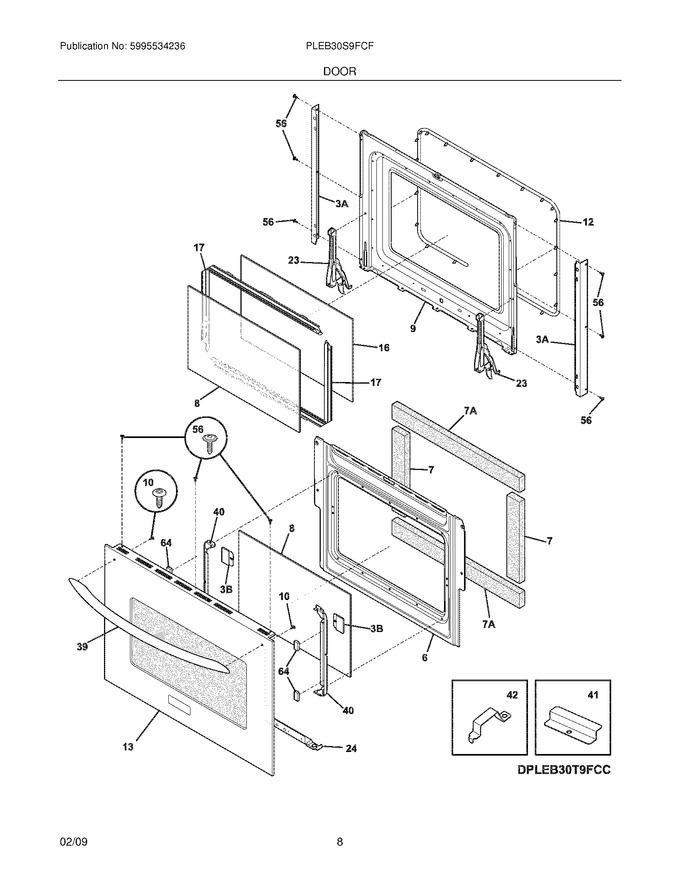

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318360108		Liner,oven Door				$ 123.14
10	5304414648		Screw,10-24 ,(4)   (Replaces: 5303308458)				$ 14.18
12	318053121		Seal,oven Door				$ 99.91
13	318272189		Door Assy,w/nameplate ,stainless Steel ,outer,w/tape & Foil		Appelez-nous	-
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
23	318567100		Hinge,oven Door ,(2)				$ 84.74
24	318260301		Trim,door ,black ,lower				$ 44.26
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)   (Replaces: 318262101)				$ 24.99
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303323277		Screw (8-18x13/32)				$ 8.66
