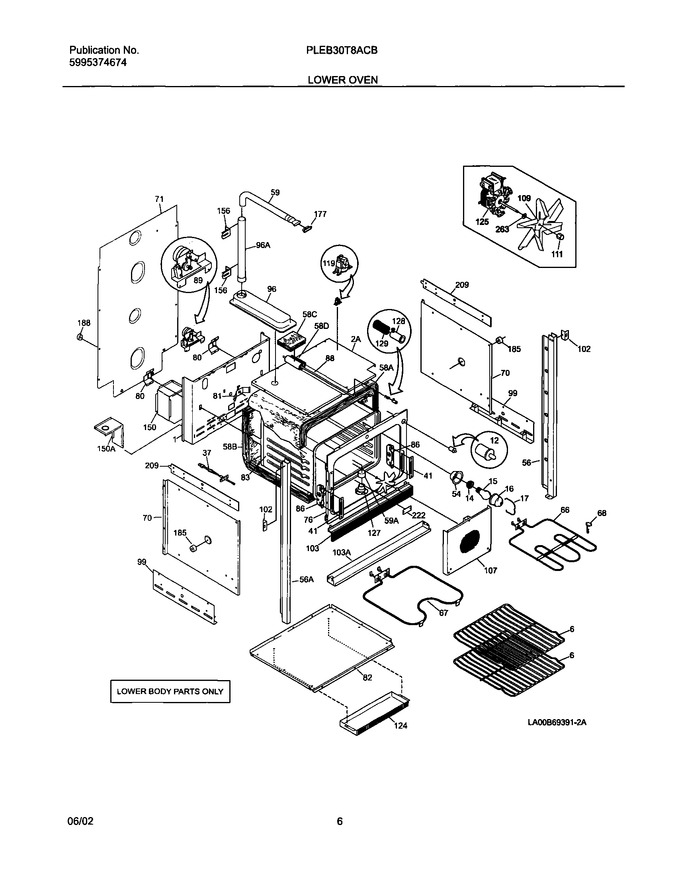

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Panel,main Back |
|
- | |||||
| 6 | 318345205 | Rack,oven (Replaces: 318025304) |
|
Immediately | $ 138.78 | ||||
| 15 | 40A15 | Bulb/lamp,oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318029111 | Trim,bodyside ,stainless ,rh |
|
- | |||||
| 59 | 318072504 | Tube-oven Vent |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750 W (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071211 | Shield-wire |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 82 | 318072302 | Shield,oven Bottom |
|
- | |||||
| 83 | 318089607 | Liner,oven |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 96 | 5303317197 | Duct,oven Vent ,assy |
|
- | |||||
| 99 | 318055410 | Support,adjustable ,(2) |
|
- | |||||
| 102 | 318090900 | Support-oven Front,(2) |
|
- | |||||
| 103 | 318028500 | Trim,base ,black |
|
- | |||||
| 107 | 318119600 | Cover-fan |
|
- | |||||
| 109 | 5303311203 | Blade,fan |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 124 | 318076903 | Box-vent |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 150 | 318072204 | Bracket,support ,rh |
|
- | |||||
| 156 | 5303317198 | Bracket-oven Vent |
|
- | |||||
| 177 | 318053800 | Gasket Vent |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 188 | 08007817 | Spacer,(6) |
|
- | |||||
| 209 | 318086200 | Plate,retainer |
|
- | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303322885 | Spacer,fan Blade |
|
- | |||||
| 2A | 318071704 | Shield-oven Top |
|
- | |||||
| 56A | 318029110 | Trim,bodyside ,stainless ,lh |
|
- | |||||
| 58A | 318133744 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133769 | Insulation,oven Back |
|
- | |||||
| 58C | 318133755 | Insulation |
|
- | |||||
| 58D | 318133757 | Insulation |
|
- | |||||
| 59A | 5303320844 | Tube,oven Vent |
|
- | |||||
| 96A | 3016325 | Duct,oven Vent ,center |
|
- | |||||
| F103 | 318027700 | Trim,base ,stainless ,outer |
|
- | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F12 | 318394803 | Switch,light (Replaces: 318089913) |
|
Immediately | $ 44.23 | ||||
| F125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F150 | 318072205 | Bracket,support ,lh |
|
$ 72.35 | |||||
| F37 | 316217002 | Sensor,oven Temp Probe (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| F67 | 318255006 | Element,bake ,3000 W (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| F89 | 318095956 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095934) |
|
Immediately | $ 143.83 | ||||
| NI | 318120711 | Switch |
|
$ 87.68 | |||||
| NI | 5303311207 | Tube, Protector |
|
- | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
