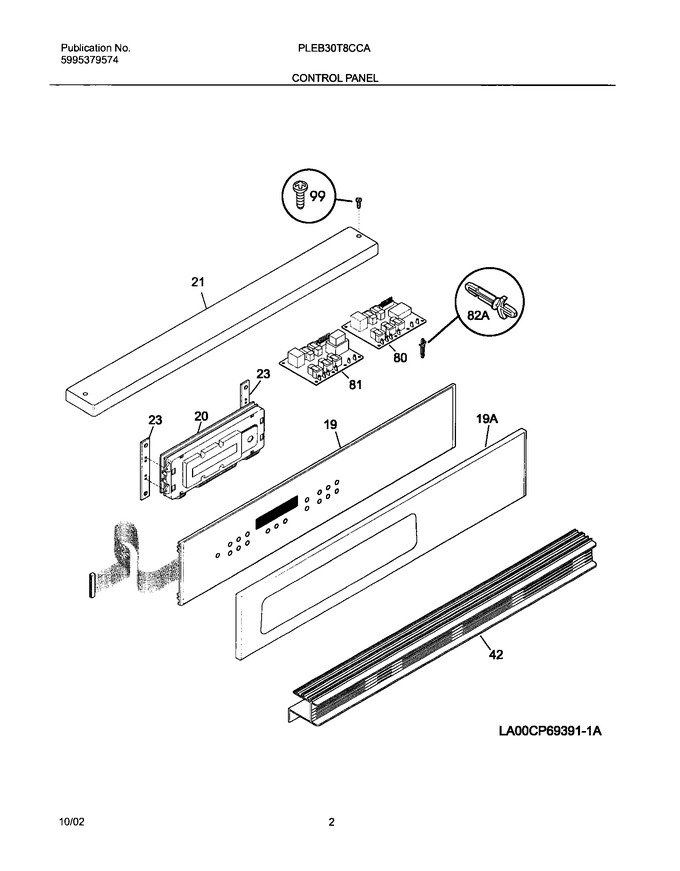

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030214		Panel,control ,black ,back				$ 90.16
21	318029700		Trim,top ,stainless		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027410		Trim,vent ,black				$ 404.51
99	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
19A	318192813		Panel,control ,stainless ,front		Appelez-nous	-
82A	5303317199		Support, Snap-in, (3)				$ 36.75
F20	318010501		Clock/timer, Eoc				$ 666.75
F80	318022001		Relay Board			Immediately	$ 489.91
F81	318022002		Relay Board,w/transformer				$ 482.74
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
