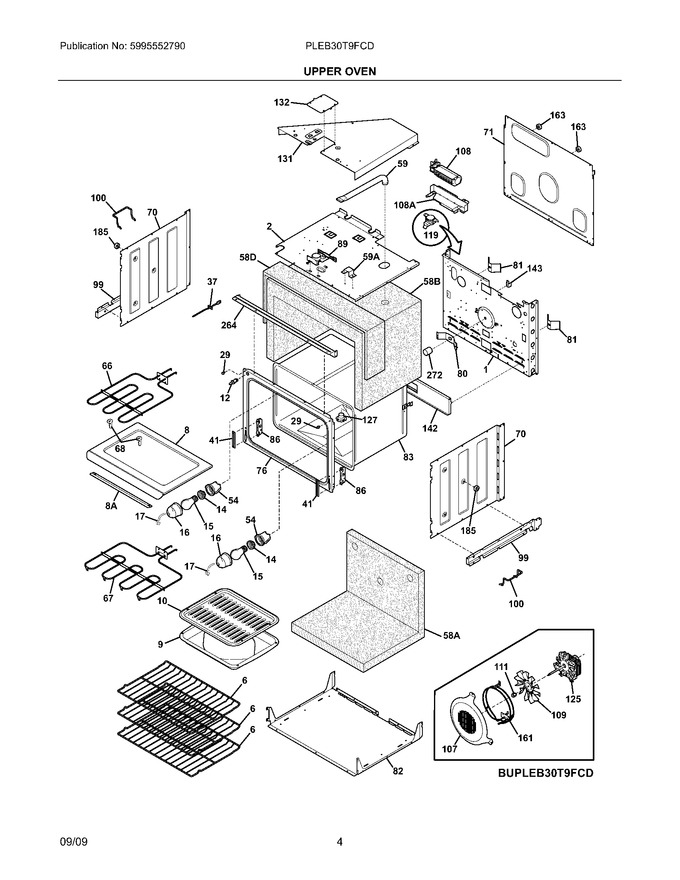

05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258902		Shield,insulation ,upper		Appelez-nous	-
6	318345214		Rack,oven ,(3)				$ 76.23
8	318262001		Cover,element				$ 398.49
9	5303317977		Pan,broileroptional Access0ry		Appelez-nous	-
10	5303317976		Insert,broiler Panoptional Access0ry		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072560		Duct,oven Vent		Appelez-nous	-
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056217		Front,oven				$ 143.06
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261400		Liner,oven Assy				$ 313.16
86	318328010		Receptacle,hinge				$ 45.68
99	318252804		Support,side		Appelez-nous	-
100	318410300		Handle,moving ,double Oven ,(2)		Appelez-nous	-
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut-fan Retainer   (Replaces: 318399800)			Immediately	$ 19.13
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
131	318272901		Box,vent				$ 59.01
132	318003000		Plate,shield		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer,(4)		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257701		Trim,oven ,black ,front				$ 78.91
272	318249409		Tube,protector		Appelez-nous	-
58A	318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	318133791		Insulation,oven Back ,back/bottom		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
59A	318261600		Bracket,vent Tube		Appelez-nous	-
8A	318318600		Bracket,element ,hidden Bake				$ 37.17
F108	318073028		Motor,blower			Immediately	$ 271.69
F108	318251300		Bracket,fan Support				$ 54.60
F119	318004900		Switch,thermal				$ 60.25
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F161	318255504		Element,convection ,350 W				$ 97.07
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318254906		Element,bake ,3400w ,8 Pass			Immediately	$ 259.36
F89	318261229		Motor,latch Assy   (Replaces: 318261215)			Immediately	$ 93.62
FNI	318231869		Harness,wiring ,door Switch		Appelez-nous	-
FNI	318199768		Wiring Harness,latch ,bas		Appelez-nous	-
FNI	318402206		Wiring Harness,main ,latch		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	318199787		Wiring Harness,latch ,no Bas		Appelez-nous	-
NI	318340201		Bracket,insul. Panel		Appelez-nous	-
NI	318294903		Insullation,9.5x26.75x.5		Appelez-nous	-
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303300265		Screw,8-18 X 1/2 ,silver ,(4)				$ 15.17
