SELECT A DIAGRAM

01 - Cover


03 - Controls

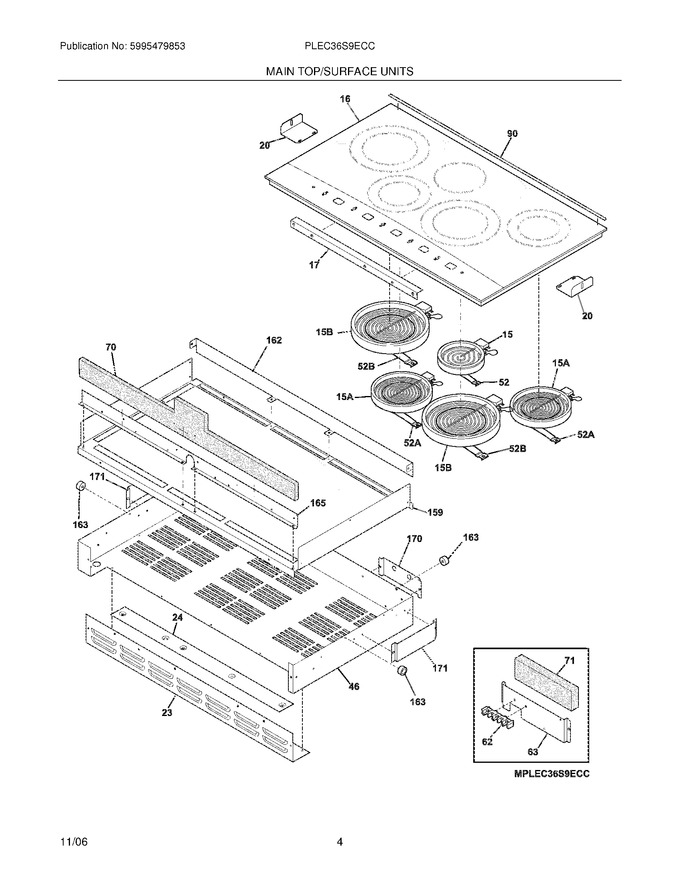

05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318323225		Maintop Assembly,glass/frame ,black/stainless				$ 720.15
17	318341001		Bracket,trim Holder ,black		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	318194715		Panel,service ,black		Appelez-nous	-
24	318319203		Deflector,service Panel		Appelez-nous	-
46	318077251		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
70	318366902		Insulation,control Box		Appelez-nous	-
71	318366903		Insulation,2 X 7 X 1/2		Appelez-nous	-
90	318311301		Trim,stainless ,rear				$ 332.59
159	318125159		Deflector		Appelez-nous	-
162	318161408		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
165	318161417		Deflector		Appelez-nous	-
170	318124911		Screen,thermal		Appelez-nous	-
171	318124912		Screen,thermal		Appelez-nous	-
52A	318122010		Spring,element Mtg ,3000w				$ 62.51
52B	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
F15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F15A	318198952		Element,surface ,750/1800w ,dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
F15B	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
NI	318083068		Harness,wiring ,limiter		Appelez-nous	-
NI	318052533		Ground Wire,w/terminal		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	318078553		Box & Wires Assy		Appelez-nous	-
NI	318199424		Harness,wiring ,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
