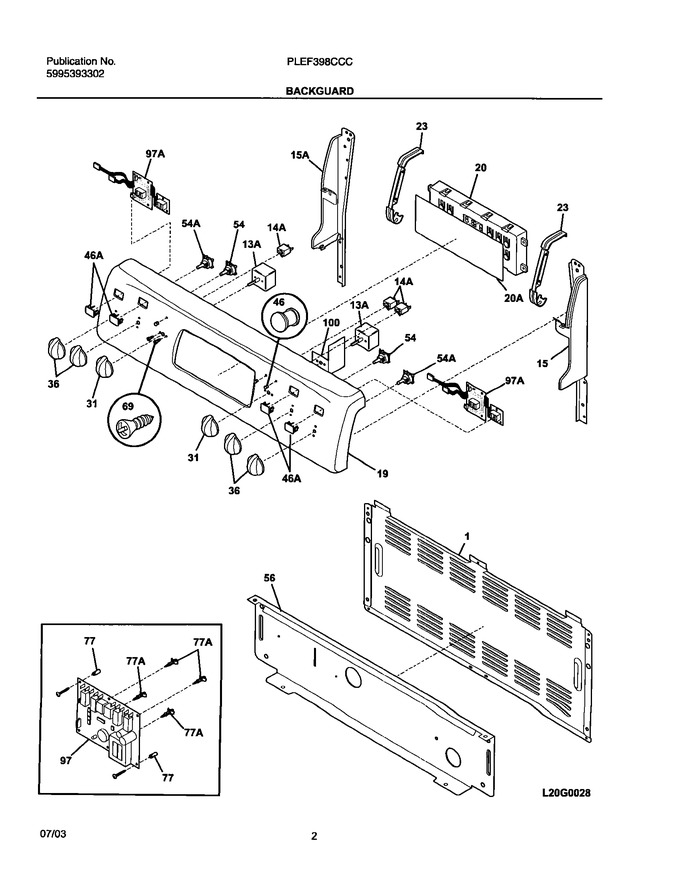

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316239900 | Shield,backguard ,rear Wall |
|
$ 93.03 | |||||
| 15 | 316220216 | Support,backguard ,black ,rh |
|
$ 79.85 | |||||
| 19 | 316233836 | Panel,backguard ,stainless |
|
- | |||||
| 23 | 316220900 | Bracket,clock Mtg |
|
$ 59.43 | |||||
| 31 | 316223002 | Knob,black |
|
Immediately | $ 57.64 | ||||
| 36 | 316223019 | Knob,control ,black |
|
$ 45.65 | |||||
| 46 | 316040201 | Lens,indicator Light ,red |
|
- | |||||
| 54 | 316239600KIT | Control,surface Element ,single ,potentiometer (Replaces: 316239600) |
|
Immediately | $ 122.03 | ||||
| 56 | 316234003 | Shield,backguard ,black ,inner |
|
- | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 97 | 316239400 | Board,power |
|
- | |||||
| 100 | 316247400 | Insulator,switch |
|
$ 30.70 | |||||
| 14A | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15A | 316220217 | Support,backguard ,black ,lh |
|
$ 61.32 | |||||
| 20A | 318214601 | Overlay,clock ,black (Replaces: 316243301) |
|
$ 57.41 | |||||
| 46A | 316239000 | Lens,led Display |
|
$ 56.28 | |||||
| 54A | 316239601KIT | Control,surface Element ,dual ,potentiometer (Replaces: 316239601) |
|
$ 88.36 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 97A | 316247600 | Spacer,foam ,(16) ,user Interface |
|
- | |||||
| 97A | 316239500 | Board,user Interface |
|
$ 461.26 | |||||
| F13A | 5304508926 | Switch,infinite ,drawer/zone ,warmer (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| F20 | 316207620 | Clock/timer,eoc |
|
$ 415.89 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316247700 | Nut,hex Control Mtg ,(4) |
|
$ 18.20 | |||||
| NI | 316247800 | Washer-lock,control Mtg |
|
$ 18.20 | |||||
| NI | 5303289910 | Screw,8a ,1`` ,power Board Mtg |
|
$ 5.67 | |||||
| NI | 316253601 | Harness,backguard |
|
$ 194.30 | |||||
| NI | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
