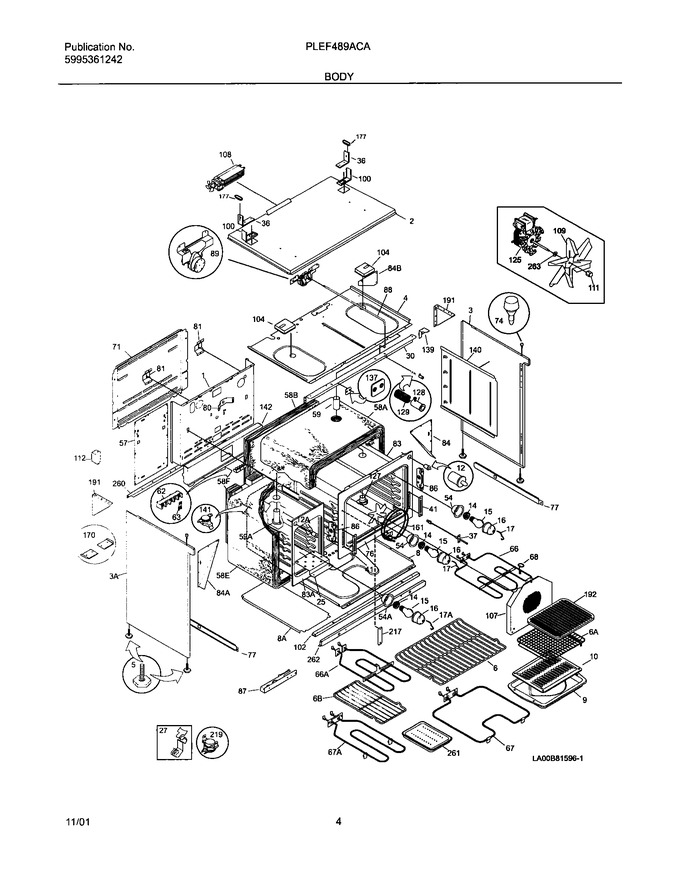

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Panel,main Back |
|
- | |||||
| 2 | 318173610 | Conduit,air |
|
- | |||||
| 3 | 318066007 | Panel,bodyside ,black ,rh |
|
- | |||||
| 4 | 318073706 | Panel,subtop |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318345205 | Rack,oven (Replaces: 318025304) |
|
Immediately | $ 138.78 | ||||
| 8 | 318133000 | Panel,heat Shield ,oven Bottom |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch,oven Light ,door Frame (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 25 | 318179107 | Panel,heat Shield ,sm Oven Bottom |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 30 | 318023913 | Bracket,main Top |
|
- | |||||
| 36 | 318182110 | Support,flue Conduit |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318055701 | Panel,small Oven Back |
|
- | |||||
| 59 | 5303320844 | Tube,oven Vent |
|
- | |||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750 W (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 71 | 5303310515 | Panel,wiring Cover ,rear |
|
$ 368.97 | |||||
| 74 | 318147420 | Bumper,base |
|
- | |||||
| 76 | 318056004 | Frame,oven ,front |
|
- | |||||
| 77 | 316105501 | Glide,warmer Drawer ,outer/rh & Lh ,(2) (Replaces: 316105500) |
|
$ 90.72 | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 83 | 318089610 | Liner,oven Assy |
|
- | |||||
| 84 | 5303326184 | Gusset,rh Rear |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 318111800 | Plate,cord Set Mtg |
|
- | |||||
| 88 | 5303311160 | Rod-latch |
|
- | |||||
| 100 | 318182010 | Flue Conduit Inf. |
|
- | |||||
| 102 | 318111901 | Channel,oven Support ,black |
|
- | |||||
| 104 | 318182210 | Adapter,flue |
|
- | |||||
| 107 | 5303318711 | Cover,fan |
|
- | |||||
| 108 | 318073002 | Blower,fan |
|
- | |||||
| 109 | 5303311203 | Blade,fan |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 137 | 3204318 | Plate-strike |
|
- | |||||
| 139 | 318042900 | Bracket,filler |
|
- | |||||
| 140 | 318071300 | Plate,insul Retainer |
|
- | |||||
| 142 | 318123901 | Deflector |
|
- | |||||
| 170 | 5304405241 | Anti-tip Bracket |
|
$ 59.17 | |||||
| 177 | 5303324040 | Gasket-vent |
|
- | |||||
| 191 | 5303304030 | Bracket,angle ,corner |
|
- | |||||
| 217 | 316042300 | Plate,warning |
|
- | |||||
| 260 | 318055500 | Bracket,gusset Support |
|
- | |||||
| 261 | 08014183 | Pan,broiler ,small Oven |
|
- | |||||
| 262 | 08011954 | Channel,oven Support ,front |
|
$ 47.60 | |||||
| 263 | 5303322885 | Spacer,fan Blade |
|
- | |||||
| 12A | 5301314211 | Switch,oven Light ,sm Door Frame |
|
$ 95.29 | |||||
| 17A | 5303205904 | Clip,lamp Cover ,retainer |
|
$ 7.67 | |||||
| 3A | 318066008 | Panel,bodyside ,black ,lh |
|
- | |||||
| 54A | 5303271606 | Housing,oven Light |
|
- | |||||
| 58A | 318133744 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133769 | Insulation,oven Back |
|
- | |||||
| 58E | 318133720 | Insulation,wrapper ,small Oven |
|
- | |||||
| 58F | 318133721 | Insulation,small Oven Back |
|
- | |||||
| 59A | 318072521 | Tube,oven Vent ,lh |
|
- | |||||
| 6A | 5303311206 | Shelf,broiler Pan |
|
- | |||||
| 6B | 318119700 | Rack,shelf ,small Oven |
|
- | |||||
| 83A | 318089201 | Liner,small Oven |
|
- | |||||
| 84A | 5303326185 | Gusset,lh Rear |
|
- | |||||
| 84B | 318055901 | Gusset-rear |
|
- | |||||
| 8A | 318071900 | Panel,small Oven ,bottom |
|
- | |||||
| F112 | 5303324861 | Relay,power ,miniature |
|
- | |||||
| F125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F141 | 5303284446 | Switch, Thermal Cutout |
|
- | |||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F161 | 318255511 | Element,convection ,2500 W (Replaces: 318050700) |
|
Immediately | $ 110.20 | ||||
| F219 | 318003600 | Thermostat-safety |
|
$ 293.37 | |||||
| F37 | 316217002 | Sensor,oven Temp Probe (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F66A | 318110100 | Element-broil, Small Oven |
|
- | |||||
| F67 | 318255006 | Element,bake ,3000 W (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| F67A | 318110600 | Element-bake, Small Oven |
|
- | |||||
| F89 | 318095956 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095934) |
|
Immediately | $ 143.83 | ||||
| NI | 5303307980 | Screw,8-32 X 0.437 |
|
Immediately | $ 14.18 | ||||
| NI | 318120710 | Switch,cooktop Shutoff |
|
- | |||||
| NI | 5304400427 | Screw,6-20 X 1/2 |
|
- | |||||
| NI | 316205500 | Nut, Hex, 10-32 (Replaces: 5303308427) |
|
$ 11.34 | |||||
| NI | 5303311207 | Tube, Protector |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 0.500 ,chrome |
|
$ 15.17 |
