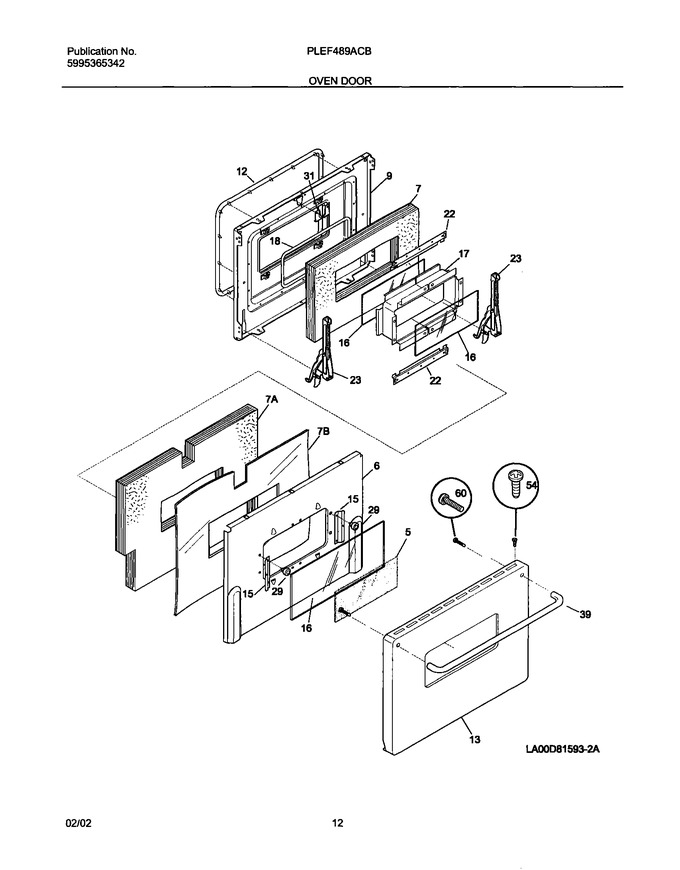

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318197300		Glass,oven Door ,outer		Appelez-nous	-
6	318057000		Panel,heat Deflector ,oven Door		Appelez-nous	-
7	318133706		Insulation,oven Door		Appelez-nous	-
9	5303320621		Liner-oven Door		Appelez-nous	-
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318009110		Panel,oven Door		Appelez-nous	-
15	318172903		Stiffener,glass		Appelez-nous	-
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139000		Spacer,oven Door Glass ,inner Frame		Appelez-nous	-
18	5303310531		Gasket,door Glass Seal ,inner		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
29	318147410		Bumper,base		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
54	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
60	240442708		Screw,handle Mtg ,10-32 X 1.125   (Replaces: 5304400794)				$ 8.34
7A	318133753		Insulation,oven Door ,cavity		Appelez-nous	-
7B	5304400472		Insulation,oven Door		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	5303323137		Screw,10-32 X 17/32				$ 11.88
