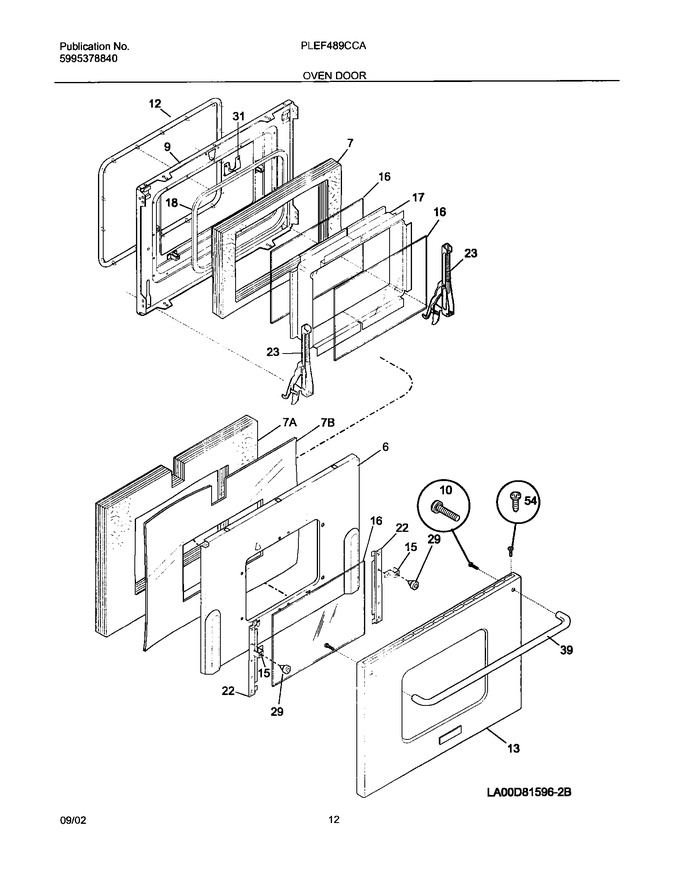

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318057020		Shield,insulation ,door		Appelez-nous	-
7	318133774		Insulation,oven Door		Appelez-nous	-
9	318156911		Door,inner				$ 332.01
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318187922		Stainless Panel,oven Door ,w/ Glass/nmplt		Appelez-nous	-
15	318172903		Stiffener,glass		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
29	318147410		Bumper,base		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
54	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
7A	318133773		Insulation,oven Door ,cavity		Appelez-nous	-
7B	318106029		Insulation,w/aluminum Foil		Appelez-nous	-
NI	3201899		Washer,flat		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
