Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086900		Shield,backguard		Appelez-nous	-
15	318161902		Bracket,end Cap ,rh				$ 48.88
16	318193110		Panel,switch Mtg		Appelez-nous	-
18	318190604		End Cap,rh		Appelez-nous	-
19	318192905		Panel,control		Appelez-nous	-
29	318017800		Knob,clock ,black ,(11)				$ 53.59
36	318099202		Knob,control				$ 156.24
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
12A	318183000		Thermostat,oven				$ 403.49
15A	318161903		Bracket,end Cap ,lh		Appelez-nous	-
16A	318182410		Panel,switch Mtg		Appelez-nous	-
18A	318190605		End Cap,lh		Appelez-nous	-
19A	318181820		Glass,control Panel		Appelez-nous	-
28A	316080600		Shaft,push Button ,black ,clock/timer/eoc				$ 49.41
32A	318099205		Knob,thermostat		Appelez-nous	-
36A	318099207		Knob,dual Control		Appelez-nous	-
36B	318099206		Knob,warm Zone		Appelez-nous	-
69A	5304401837		Screw,8-32 X 5/16		Appelez-nous	-
F14	318044824		Light,indicator		Appelez-nous	-
F14A	318044823		Light,indicator		Appelez-nous	-
F20	318010102		Clock/timer,eoc		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318293824		Switch,surface Unit ,small   (Replaces: 318220011)			Immediately	$ 97.07
F54A	318293826		Switch,surface Unit ,large   (Replaces: 318220013)				$ 89.99
F54B	318191000		Switch,infinite ,dual			Immediately	$ 102.48
F54C	318078801		Switch,element ,6`` ,warmer				$ 174.30
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

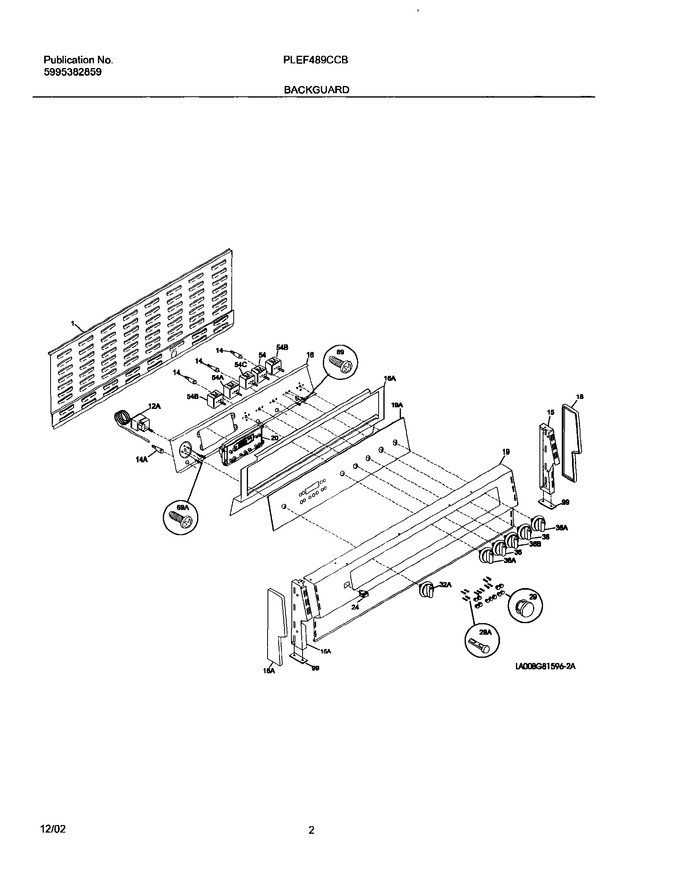

    View Diagram in Separate Window       Print Part List
