SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Maintop


09 - Drawer/small Door


11 - Oven Door

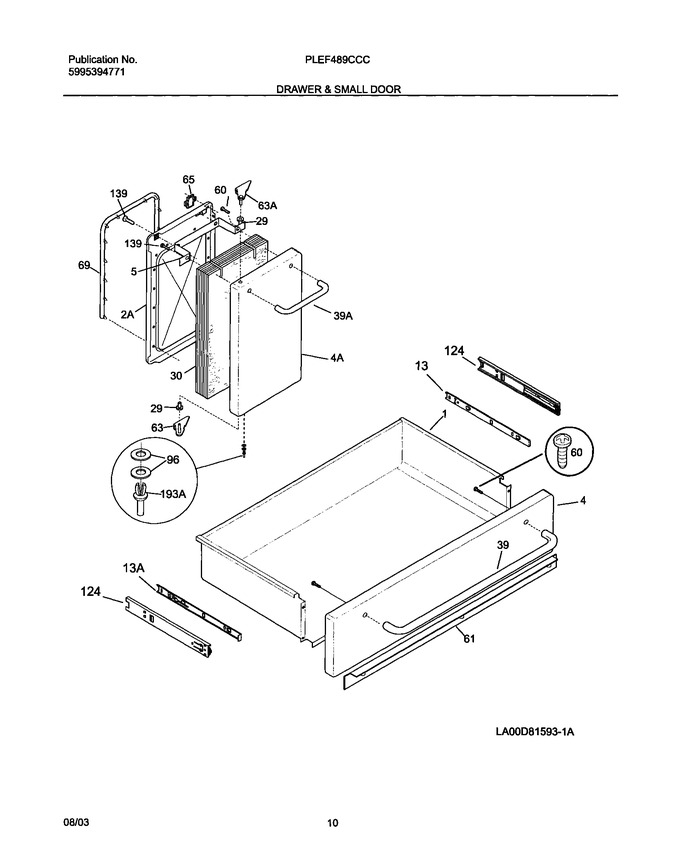

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	318158220		Panel,drawer		Appelez-nous	-
5	318014510		Spacer,door Handle		Appelez-nous	-
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
30	318133786		Insulation,small Oven Door		Appelez-nous	-
39	318039803		Handle,door		Appelez-nous	-
60	5303323137		Screw,10-32 X 17/32				$ 11.88
61	318107700		Toeplate		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
69	318053110		Seal,small Oven Door				$ 216.98
96	3201899		Washer,flat		Appelez-nous	-
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
139	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
13A	318259507		Glide,warmer ,inner Lh   (Replaces: 316105601)			Immediately	$ 69.01
2A	318048221		Liner,inner Door ,small Oven		Appelez-nous	-
39A	318039802		Handle,door ,small Oven		Appelez-nous	-
4A	318009318		Panel,oven Door ,stainless ,small				$ 340.19
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F193	5303321106		Plug-button				$ 11.60
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318229000		Baffle,small Door		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
