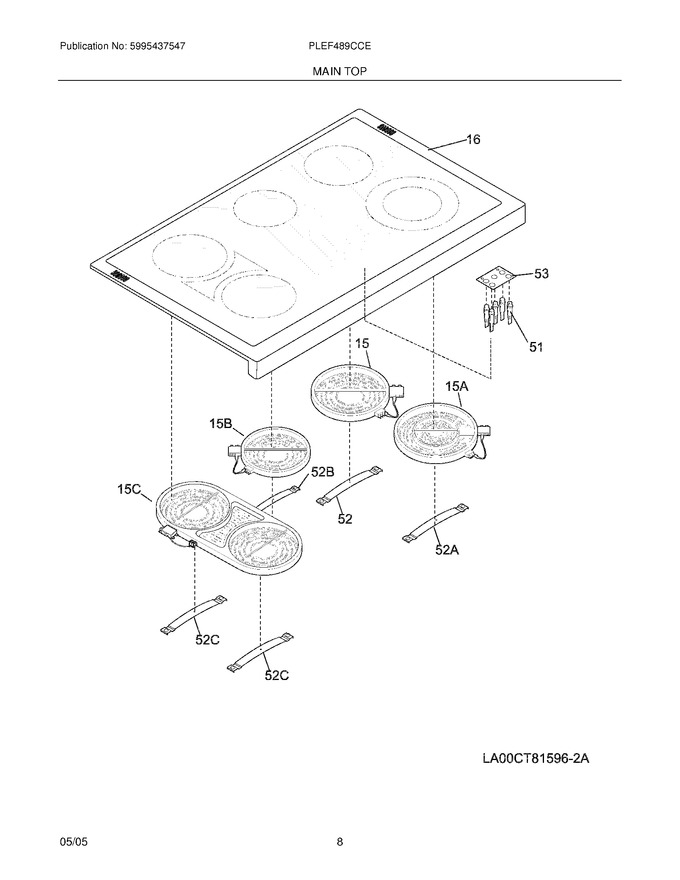

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159611		Maintop,glass		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
53	318125906		Bracket,indicator Light ,hot Surface		Appelez-nous	-
52A	318122007		Spring,element Mtg ,large				$ 53.45
52B	318122004		Spring-element Mtg,700w & 2100w				$ 55.76
52C	318122008		Spring-element Mtg				$ 90.80
F15	318198817		Element,surface ,small/6`` ,1200 W			Immediately	$ 192.78
F15A	318198923		Element,surface ,6/9 ,1000/2000w ,dual Radiant				$ 336.63
F15B	318198816		Element,surface ,warmer ,100 W		Appelez-nous	-
F15C	318258201		Element,bridge ,1800/2600			Immediately	$ 480.54
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
