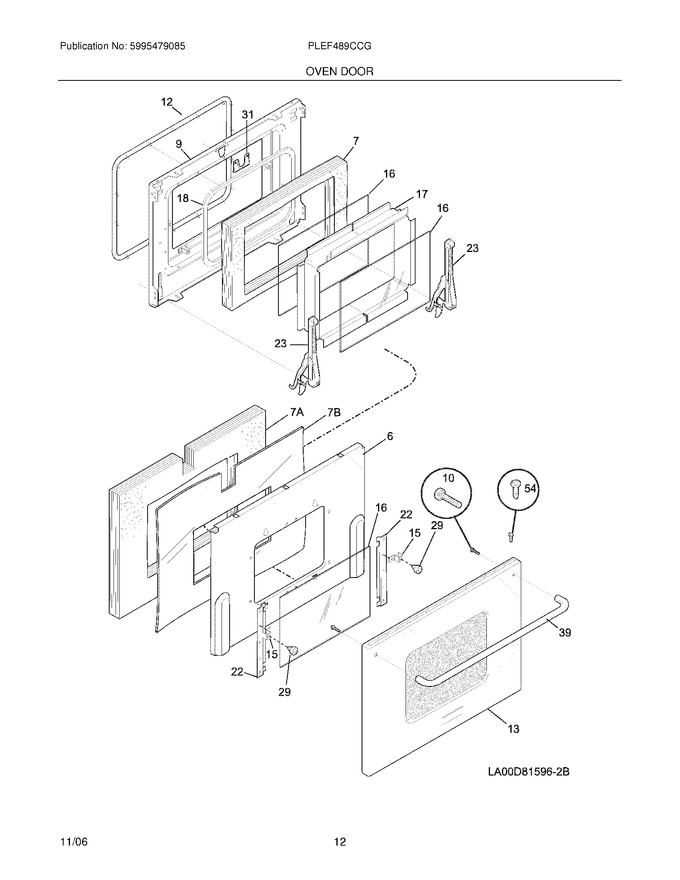

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318057021		Shield,insulation ,door		Appelez-nous	-
7	318285050		Insulation,oven Door		Appelez-nous	-
9	318156911		Door,inner				$ 332.01
10	240442708		Screw   (Replaces: 5304400794)				$ 8.34
12	318053103		Gasket,oven Door Seal   (Replaces: 318253002)			Immediately	$ 150.03
13	318187927		Stainless Panel,oven Door ,w/glass & Nmplt		Appelez-nous	-
15	318172904		Support,wire		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318293501		Gasket,door Glass Seal				$ 50.32
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024721		Hinge,lower Door ,(2)		Appelez-nous	-
29	318147412		Bumper,base				$ 7.33
31	5303310536		Latch,oven Door				$ 30.66
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
7A	318285096		Insulation,oven Door		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	3201899		Washer,flat		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
