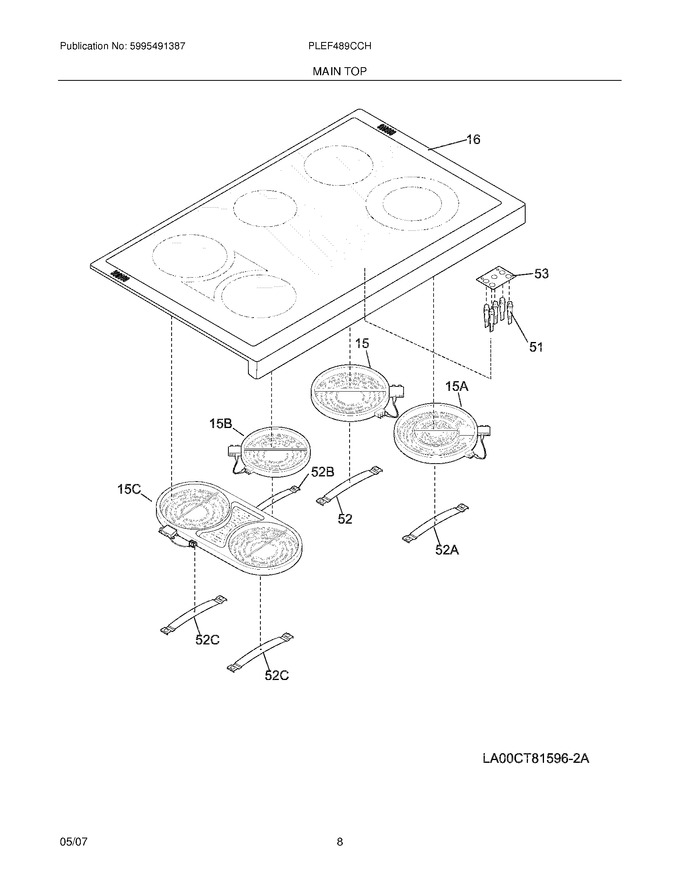

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159632		Maintop,glass ,stainless/blk		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
53	318125906		Bracket,indicator Light ,hot Surface		Appelez-nous	-
52A	318122007		Spring,element Mtg ,large				$ 53.45
52B	318122004		Spring-element Mtg,700w & 2100w				$ 55.76
52C	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
F15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F15A	316555800		Element,surface ,6/9 ,1000/2000w ,dual Radiant   (Replaces: 318198933)			Immediately	$ 152.78
F15B	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)			Immediately	$ 35.77
F15C	318258203		Element,bridge ,1800/2600			Immediately	$ 371.39
F51	318044827		Light,indicator ,clear			Immediately	$ 60.25
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318232332		Wiring Harness,cooktop		Appelez-nous	-
NI	318231845		Harness,wiring ,pilot Light		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
