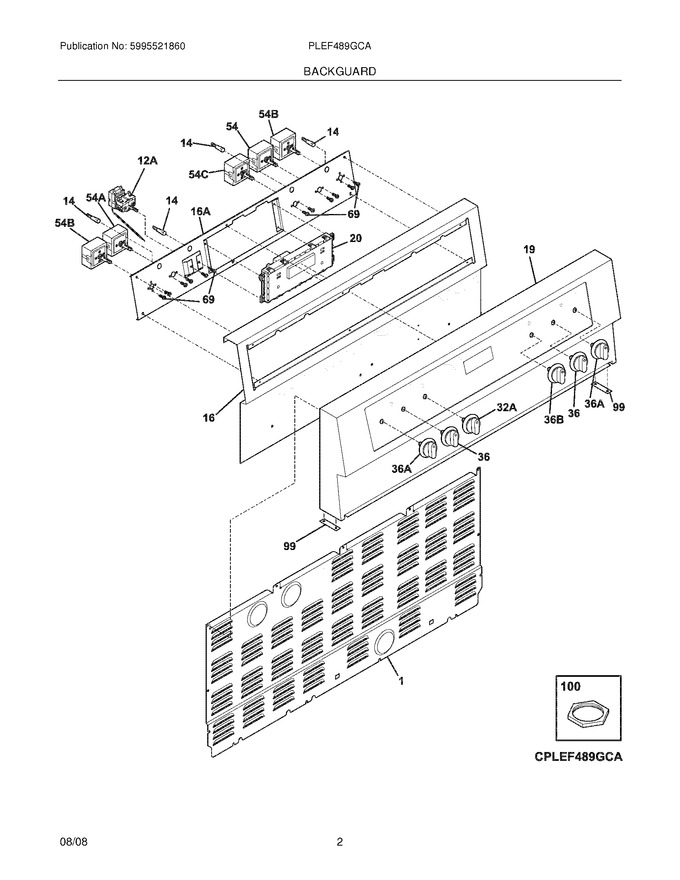

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086916		Shield,backguard		Appelez-nous	-
16	318404002		Panel,control Mtg.		Appelez-nous	-
36	318099210		Knob,control ,(2)		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
100	5303325982		Nut,keps ,10-32		Appelez-nous	-
16A	318182423		Panel,switch Mtg		Appelez-nous	-
32A	318099205		Knob,thermostat		Appelez-nous	-
36A	318099212		Knob,dual Control ,(2)		Appelez-nous	-
36B	318099211		Knob,warm Zone		Appelez-nous	-
F12A	318183000		Thermostat,oven				$ 403.49
F14	318044829		Light,indicator ,clear				$ 54.67
F19	318534200		Panel,control Assy ,stainless ,w/touch Pad		Appelez-nous	-
F20	316462834		Controller,electronic ,es530				$ 465.99
F54	318293824		Switch,surface Element ,small			Immediately	$ 97.07
F54A	318293826		Switch,surface Element ,large				$ 89.99
F54B	318191000		Switch,infinite ,dual   (Replaces: 318191003)			Immediately	$ 102.48
F54C	318078801		Switch,element ,6`` ,warmer				$ 174.30
FNI	318232348		Wiring Harness		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
