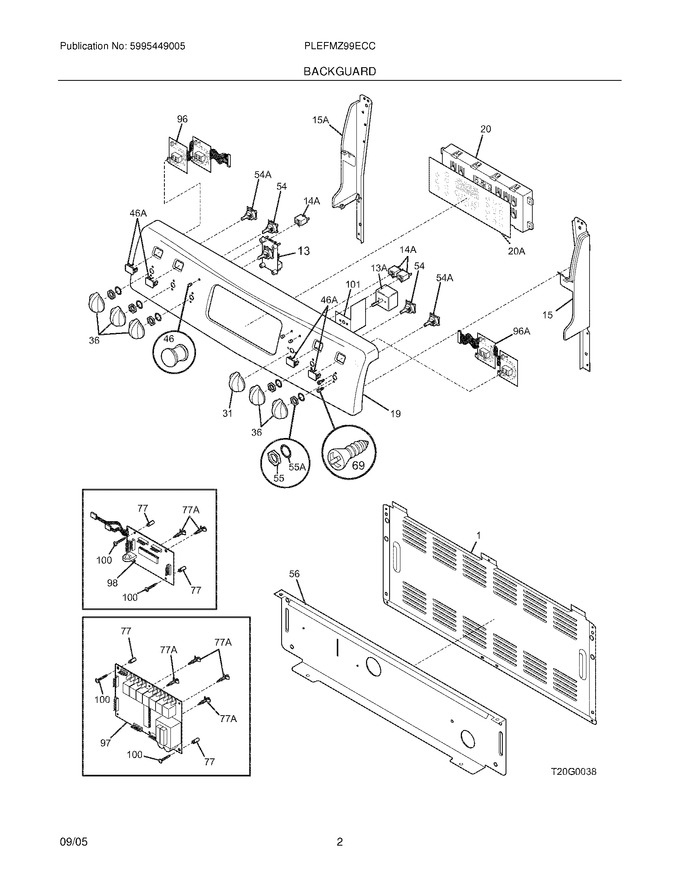

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield,backguard ,rear Wall (Replaces: 316416100) |
|
$ 57.64 | |||||
| 13 | 316414400 | Control,bake ,mini Oven |
|
$ 282.50 | |||||
| 15 | 316411405 | Support,backguard ,black ,rh |
|
$ 83.95 | |||||
| 19 | 316424153 | Panel,control ,stainless |
|
- | |||||
| 31 | 316223002 | Knob,control ,black |
|
Immediately | $ 57.64 | ||||
| 36 | 316223019 | Knob,control ,black |
|
$ 45.65 | |||||
| 46 | 316040201 | Lens,indicator Light ,red |
|
- | |||||
| 54 | 5304454273 | Control,surface Element ,single ,potentiometer (Replaces: 316239604) |
|
$ 101.97 | |||||
| 55 | 316247700 | Nut,hex Control Mtg ,(5) |
|
$ 18.20 | |||||
| 56 | 316234045 | Shield,backguard ,black ,inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 77 | 316247900 | Spacer,power Board ,(2) |
|
$ 44.65 | |||||
| 96 | 316426300 | Board,display ,lh |
|
$ 111.70 | |||||
| 97 | 316426500 | Board,power |
|
$ 358.94 | |||||
| 98 | 316426400 | Board,user Interface |
|
$ 247.85 | |||||
| 100 | 5303289910 | Screw,8a ,1`` ,power Board Mtg |
|
$ 5.67 | |||||
| 101 | 316247400 | Insulator,switch |
|
$ 30.70 | |||||
| 13A | 5304508926 | Switch,infinite ,warmer (Replaces: 316095502) |
|
Immediately | $ 84.18 | ||||
| 14A | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15A | 316411404 | Support,backguard ,black ,lh |
|
$ 83.95 | |||||
| 20A | 316419700 | Overlay,clock ,black ,w/mini Oven ,es510 |
|
$ 51.60 | |||||
| 46A | 316239000 | Lens,led Display |
|
$ 56.28 | |||||
| 54A | 316239605 | Control,surface Element ,dual ,potentiometer |
|
- | |||||
| 55A | 316247800 | Washer,lock ,(5) ,control Mtg |
|
$ 18.20 | |||||
| 77A | 316114100 | Spacer,(2) |
|
$ 60.96 | |||||
| 96A | 316426301 | Board,display ,rh |
|
$ 353.01 | |||||
| F20 | 316418704 | Clock/timer,electronic ,w/mini Oven ,es510 |
|
$ 373.22 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316416909 | Harness,mini Oven Cntl |
|
- | |||||
| NI | 316416910 | Harness,main Control |
|
$ 58.54 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
