SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

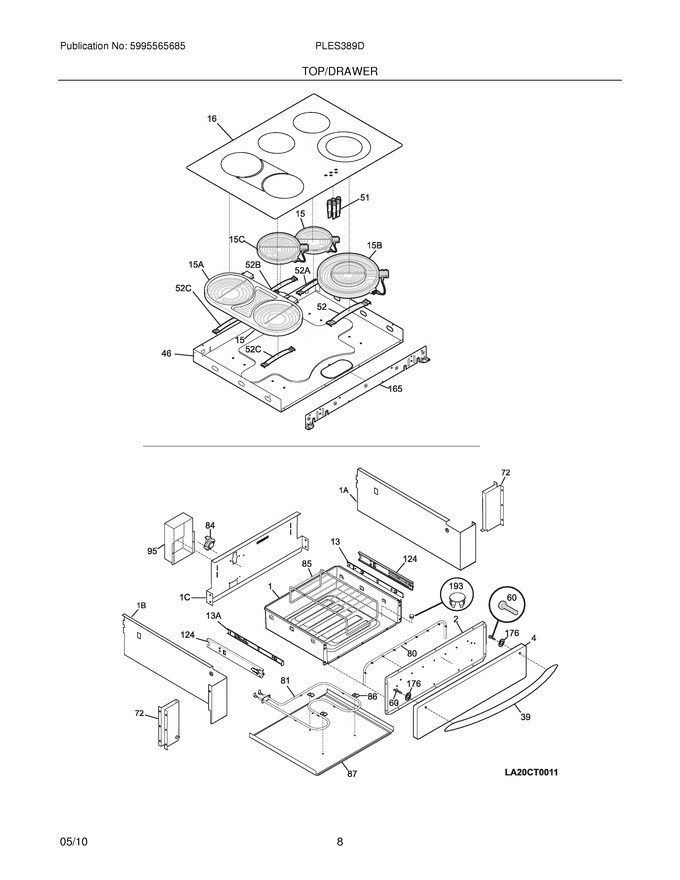

07 - Top/drawer


09 - Door


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108025		Liner,drawer		Appelez-nous	-
4	318107913		Panel,drawer ,stainless		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh   (Replaces: 318259501)			Immediately	$ 69.01
16	318223626		Main Top,glass Assy. ,black				$ 489.75
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219802)				$ 145.31
46	318225401		Box,burner		Appelez-nous	-
52	318122010		Spring,element Mtg ,3000w				$ 62.51
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
72	318113403		Bracket,slide ,(2)		Appelez-nous	-
80	318054310		Gasket,warmer Drawer				$ 59.85
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
86	316095800		Clip,hold Down ,(3)				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143702		Cover,wire		Appelez-nous	-
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318227502		Plate,mounting		Appelez-nous	-
176	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
193	5303325173		Cap-plug		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh   (Replaces: 318259500)				$ 69.01
1A	318143335		Deflector,warmer Drawer ,rh		Appelez-nous	-
1B	318143334		Deflector,warmer Drawer ,lh		Appelez-nous	-
1C	318143203		Deflector,warmer Drawer ,rear		Appelez-nous	-
52A	318122006		Spring,element Mtg ,small				$ 66.25
52B	318122004		Spring-element Mtg,700w & 2100w				$ 55.76
52C	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318258201		Element,bridge ,1800/2600			Immediately	$ 480.54
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15C	318198816		Element,surface ,warmer ,100 W		Appelez-nous	-
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005105		Thermostat				$ 145.90
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head ,8-18 X 3/8`` ,(7)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
