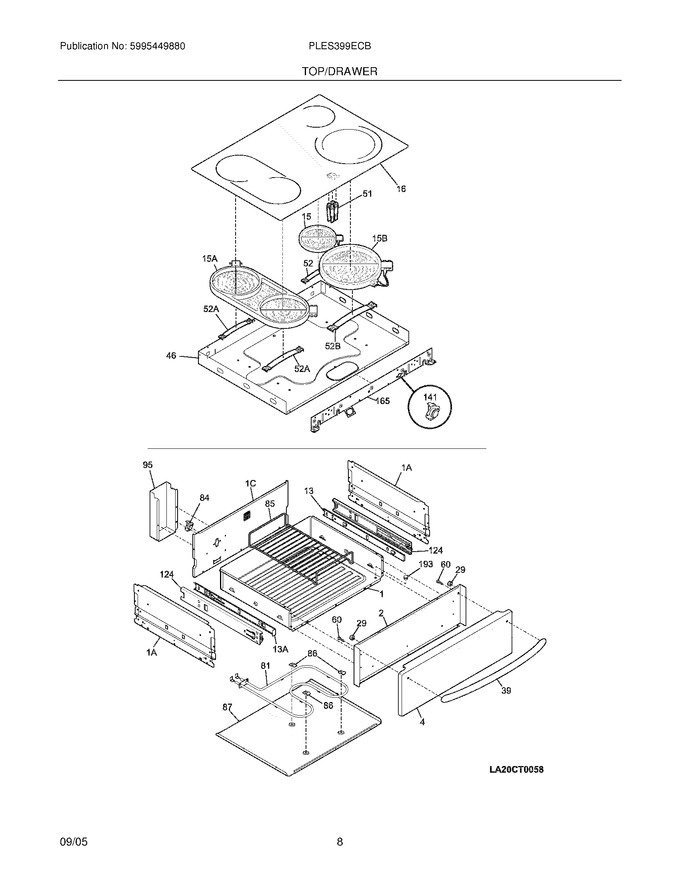

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304401 | Drawer,body Assembly |
|
- | |||||
| 2 | 318303901 | Panel,drawer ,black ,inner |
|
- | |||||
| 4 | 318298829 | Panel,drawer ,stainless ,front (Replaces: 318298810) |
|
$ 210.92 | |||||
| 13 | 318259507 | Glide,warmer ,inner Rh (Replaces: 318259501) |
|
Immediately | $ 69.01 | ||||
| 16 | 318223647 | Main Top,glass Assy. ,black |
|
$ 602.44 | |||||
| 29 | 318147430 | Bumper,(2) |
|
$ 18.95 | |||||
| 39 | 316246105 | Handle,door/drawer ,stainless (Replaces: 318219802) |
|
$ 145.31 | |||||
| 46 | 318225410 | Box,burner |
|
- | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 60 | 5303311174 | Screw, 10-24 X 3/8 |
|
Immediately | $ 14.89 | ||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 318257600) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel,warmer Drawer ,lower (Replaces: 318300100) |
|
$ 106.22 | |||||
| 95 | 318303800 | Shield,wire |
|
- | |||||
| 124 | 316105501 | Glide,warmer Drawer ,outer/rh & Lh ,(2) |
|
$ 90.72 | |||||
| 165 | 318227503 | Plate,mounting |
|
$ 247.59 | |||||
| 193 | 5303325173 | Cap-plug |
|
- | |||||
| 13A | 318259506 | Glide,warmer ,inner Lh (Replaces: 318259500) |
|
$ 69.01 | |||||
| 1A | 318300003 | Panel,warmer Drawer ,side ,(2) (Replaces: 318300000) |
|
$ 56.13 | |||||
| 1C | 318300300 | Panel,warmer Drawer ,rear |
|
- | |||||
| 52A | 318122008 | Spring-element Mtg |
|
$ 90.80 | |||||
| 52B | 318122011 | Spring,element ,1700w/2700w |
|
$ 62.14 | |||||
| F141 | 318005211 | Switch,thermal Cutout |
|
- | |||||
| F15 | 318198817 | Element,surface ,6`` ,1200 W ,(2) |
|
Immediately | $ 192.78 | ||||
| F15A | 318258201 | Element,bridge ,1800/2600 |
|
Immediately | $ 480.54 | ||||
| F15B | 318198926 | Element,surface ,6/9 ,1700/2700w ,dual Radiant |
|
$ 157.28 | |||||
| F51 | 318044827 | Light,indicator ,clear (Replaces: 318044822) |
|
Immediately | $ 60.25 | ||||
| F81 | 318255301 | Element,warmer Drawer (Replaces: 318255300) |
|
$ 105.42 | |||||
| F84 | 318005105 | Thermostat |
|
$ 145.90 | |||||
| NI | 318163600 | Cleaner,cooktop |
|
- | |||||
| NI | 5303325171 | Washer,plastic |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(2) |
|
$ 15.17 | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| NI | 318228919 | Harness,wiring ,cooktop |
|
$ 112.82 |
