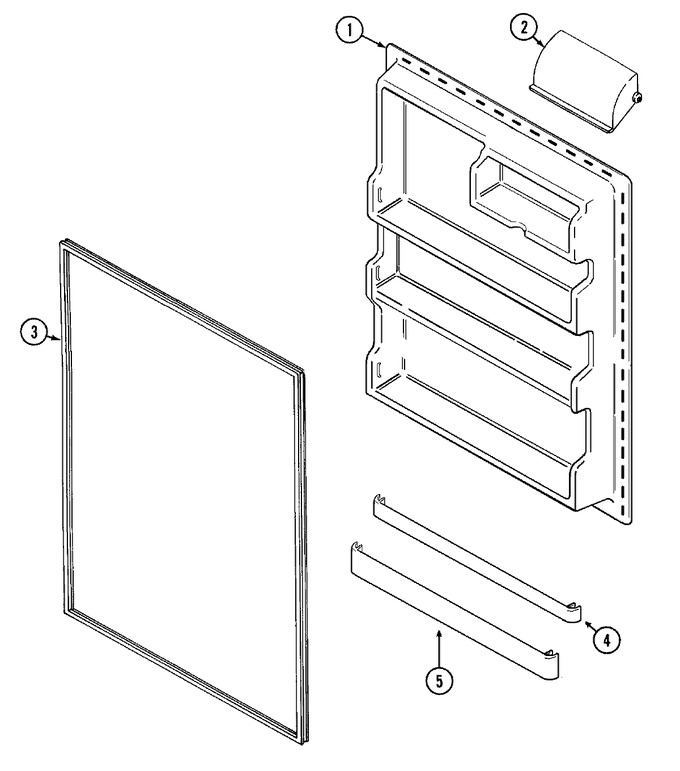

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61005388 Screw 10 Special Order $ 11.43

1 61001936 Liner, F.f. Door 10 Appelez-nous -
2 61002160 Door, Dairy 10 Appelez-nous -
3 61003999 Seal, F.f. Door (wht) 10 Special Order $ 153.37

4 61005474 Front, Pick-off 10 In-Stock Immediately $ 69.92

5 61005475 Front, Pick-off 10 Special Order $ 75.35


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for PTB1551FRW
