SELECT A DIAGRAM

01 - Cover

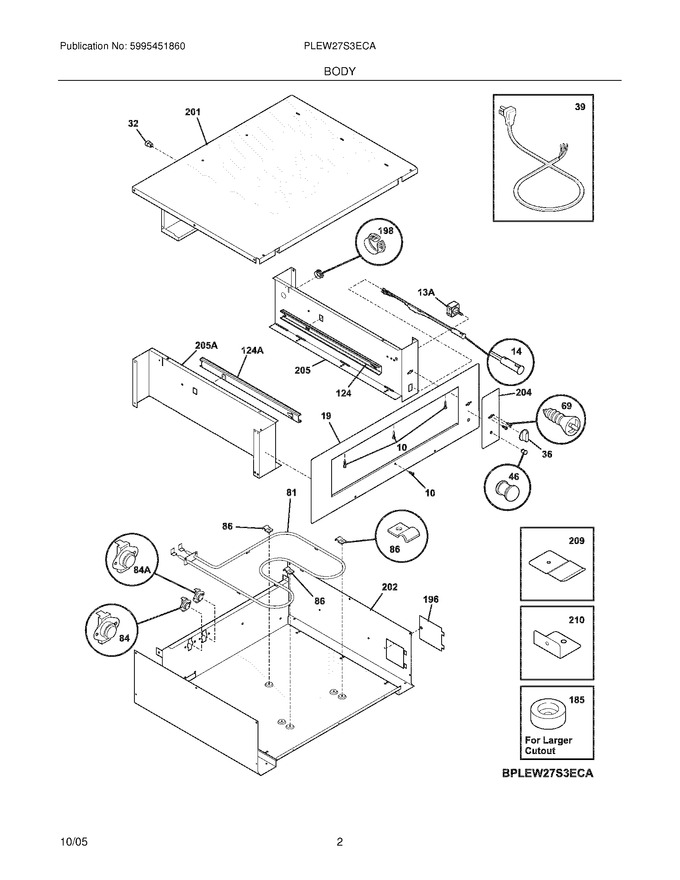

03 - Body


05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304436875		Screw,8-18 X 1/2,black				$ 14.41
14	5303051533		Light,indicator				$ 53.81
19	318281403		Panel,control ,black		Appelez-nous	-
32	318228100		Strain Relief				$ 3.36
36	318017600		Knob-warmer				$ 30.14
39	318144001		Cord,service		Appelez-nous	-
46	5308006417		Lens,indicator Lamp ,red ,(2)				$ 19.06
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
124	318259300		Channel,drawer ,rh ,outer				$ 73.50
185	318531800		Spacer,oven Shield ,(4)   (Replaces: 318014700)				$ 12.76
196	318100101		Cover-access		Appelez-nous	-
198	08008009		Bushing,side Panel ,nylon ,rh ,snap		Appelez-nous	-
201	318281502		Wrapper,upper		Appelez-nous	-
202	318281001		Wrapper,lower		Appelez-nous	-
204	318021908		Decorative Plate,black		Appelez-nous	-
205	318281205		Panel,side ,black ,rh		Appelez-nous	-
209	318247401		Bracket,wall		Appelez-nous	-
210	318262300		Bracket,front Support ,(2)				$ 32.45
13A	5304508926		Switch,infinite ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F124	318259301		Channel,drawer ,lh ,outer				$ 62.07
F205	318281305		Panel,side ,black ,lh		Appelez-nous	-
F209	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
F210	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005103		Thermostat,safety				$ 159.51
F84A	318005104		Thermostat-safety				$ 103.27
NI	318199735		Wiring Harness		Appelez-nous	-
NI	08067961		Fastener,clip Cable		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
