SELECT A DIAGRAM

01 - Cover


03 - Body

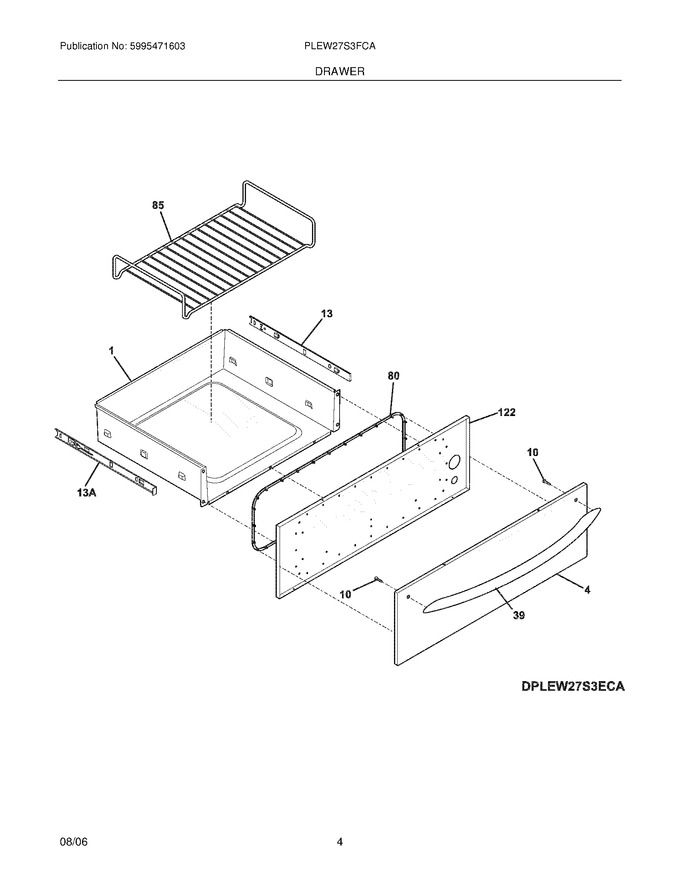

05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314603		Drawer,warmer		Appelez-nous	-
4	318280708		Panel,drawer Front ,stainless		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
13	318259400		Channel,drawer ,rh ,inner		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219801)				$ 145.31
80	318254401		Gasket,warmer Drawer		Appelez-nous	-
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
122	318281611		Panel,drawer ,black ,interior		Appelez-nous	-
13A	318259401		Channel,drawer ,lh ,inner				$ 28.92
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303304015		Washer, Padded		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
