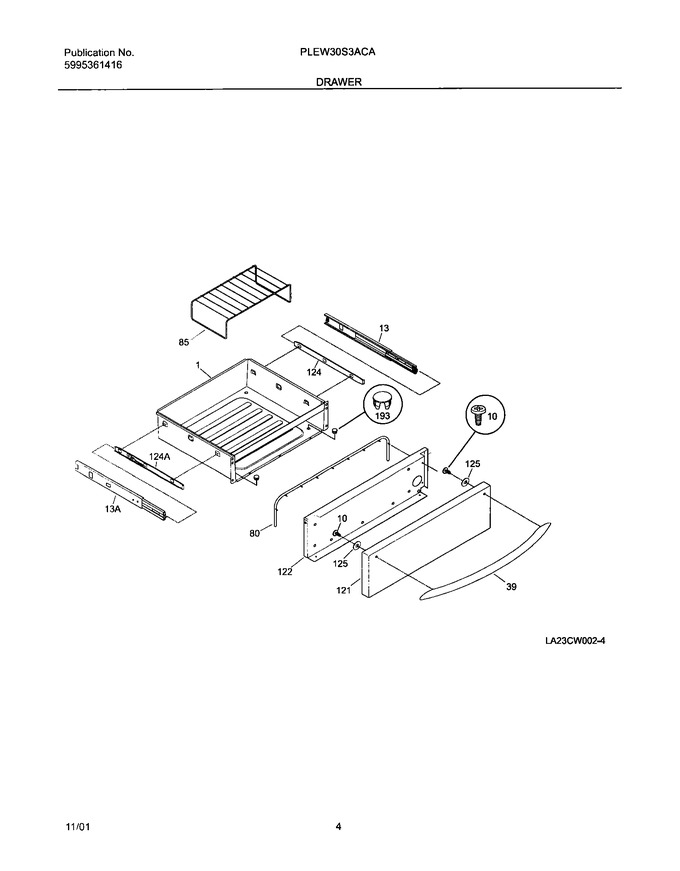

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
13	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
39	318197901		Handle,oven Door ,stainless		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
121	318107904		Panel,drawer ,stainless		Appelez-nous	-
122	318135204		Panel,inner Drawer		Appelez-nous	-
124	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
125	134716700		Washer   (Replaces: 3201909)				$ 2.12
193	5304400796		Plug		Appelez-nous	-
13A	316096501		Channel Drawer,lh,inner		Appelez-nous	-
F124	316094901		Rail-drawer,lh,outer		Appelez-nous	-
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
