SELECT A DIAGRAM

01 - Cover

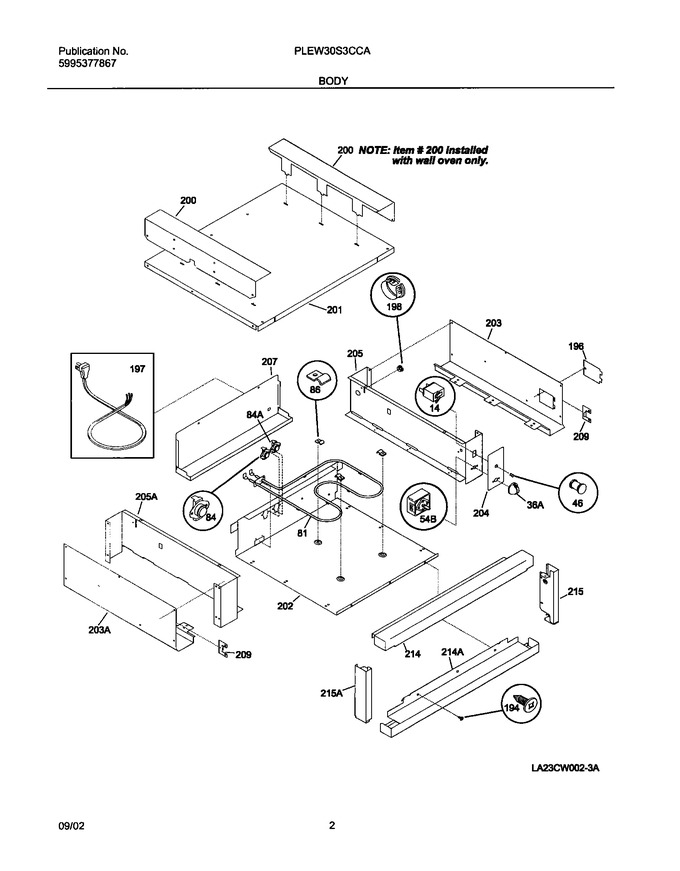

03 - Body


05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light,indicator				$ 53.81
46	5308006417		Lens,indicator Lamp ,red ,(2)				$ 19.06
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
194	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
196	318100101		Cover-access		Appelez-nous	-
197	318144000		Cord,service		Appelez-nous	-
198	08008009		Bushing,snap		Appelez-nous	-
200	318091201		Bracket,(for Wall Oven)		Appelez-nous	-
201	318145101		Wrapper Upper		Appelez-nous	-
202	318121601		Wrapper,lower		Appelez-nous	-
203	318025711		Bracket,side Panel ,rh		Appelez-nous	-
204	318021905		Decorative Plate,black		Appelez-nous	-
205	318123711		Panel,side ,rh		Appelez-nous	-
207	318143601		Panel,wire Cover		Appelez-nous	-
209	318162401		Bracket Wall		Appelez-nous	-
214	318118400		Trim,top Rail		Appelez-nous	-
215	318125600		Trim,side ,rh		Appelez-nous	-
36A	318197601		Knob,warmer ,black		Appelez-nous	-
F203	318025701		Bracket,side Panel ,lh		Appelez-nous	-
F205	318123701		Panel,side ,lh		Appelez-nous	-
F214	318118600		Trim,bottom Rail		Appelez-nous	-
F215	318125601		Trim,side ,lh		Appelez-nous	-
F54B	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F81	318255301		Element,warmer Drawer   (Replaces: 318112400)				$ 105.42
F84	318005103		Thermostat,safety				$ 159.51
F84A	318005104		Thermostat-safety				$ 103.27
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12

    View Diagram in Separate Window       Print Part List
