SELECT A DIAGRAM

01 - Cover


03 - Body


05 - Drawer

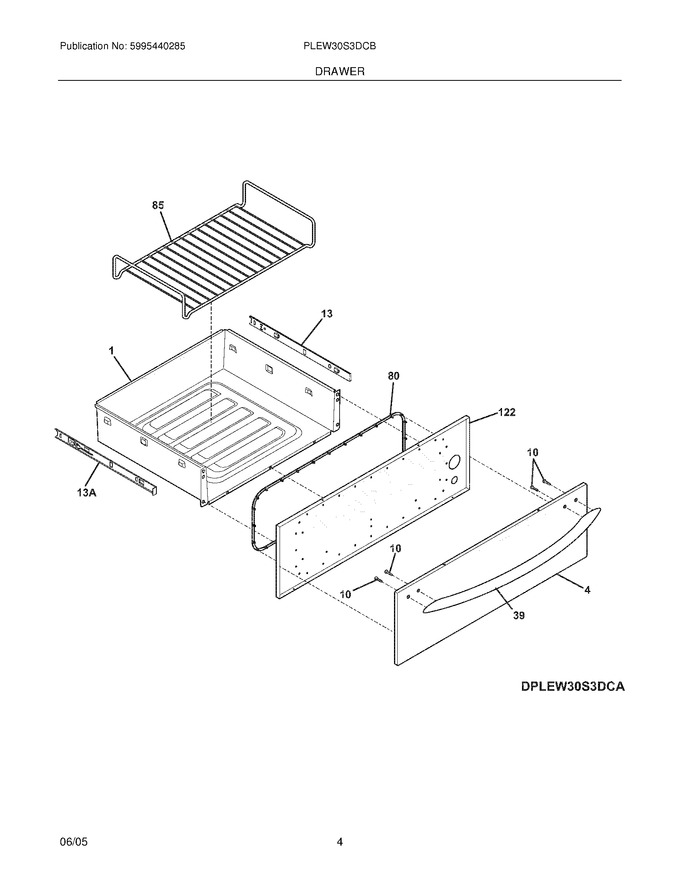

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
4	318280703		Panel,drawer Front ,stainless		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
13	318259400		Channel,drawer ,rh ,inner		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219802)				$ 145.31
80	318254400		Gasket,warmer Drawer				$ 157.87
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
122	318281609		Panel,drawer ,black ,interior		Appelez-nous	-
13A	318259401		Channel,drawer ,lh ,inner				$ 28.92
NI	5304453707		Screw,8-32 X 3/8 ,(4)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
NI	5303304015		Washer, Padded		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
