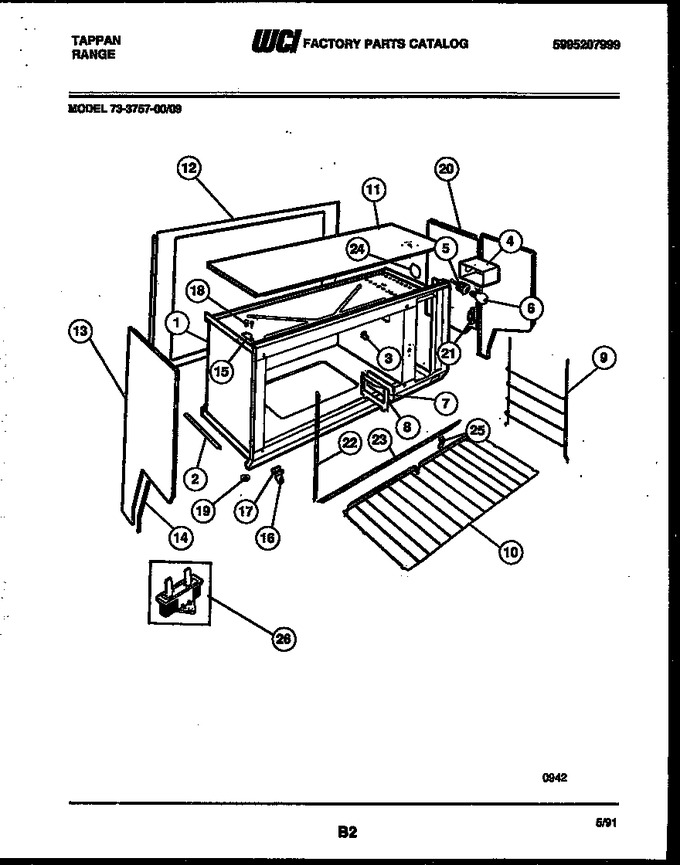

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	008T268F01		Angle, Stiffner (2)		Appelez-nous	-
3	5303011805		Clip-cap Bulb (2)		Appelez-nous	-
4	069T046F01		Box, Light		Appelez-nous	-
5	3014073		Socket-light		Appelez-nous	-
6	5303208582		Light Bulb		Appelez-nous	-
7	08011668		Lens-oven Light		Appelez-nous	-
8	08011669		Cover Lens		Appelez-nous	-
9	280T021S05		Glide Oven Rack (2)		Appelez-nous	-
10	08011675		Rack-oven		Appelez-nous	-
11	3131625		Panel-top		Appelez-nous	-
12	3051236		Back-oven Wall Upper		Appelez-nous	-
13	3051262		Panel, Bodyside, Lh (wheat)		Appelez-nous	-
14	08010548		Trim Lh		Appelez-nous	-
15	3131613		Hinge-top		Appelez-nous	-
16	5303051166		Hinge-bottom		Appelez-nous	-
17	08011665		Plate-hinge		Appelez-nous	-
18	5308011685		Screw-10-32 (2) Shoulder Special (2)		Appelez-nous	-
19	3131737		Washer-hinge (2)				$ 5.59
20	5303208706		Shield-wool Side		Appelez-nous	-
21	08011680		Catch-door		Appelez-nous	-
22	3201722		Retainer Door Seal Sides (2)		Appelez-nous	-
23	3201721		Retainer-door Seal Bottom		Appelez-nous	-
24	08067732		Cover-outlet (hood)		Appelez-nous	-
25	08011676		Strike-door		Appelez-nous	-
26	5303051385		Fuse-thermo Cutout		Appelez-nous	-
13A	3051265		Panel, Bodyside, Rh (wheat)		Appelez-nous	-
14A	08010549		Trim-rh		Appelez-nous	-
2A	3015590		Insulation-bottom (non-illustrated)		Appelez-nous	-
2B	3015588		Insulation-top (non-illustrated)		Appelez-nous	-
2C	3015591		Insulation Wrap (non-illustrated)		Appelez-nous	-
