SELECT A DIAGRAM
01 - Cover
03 - Door

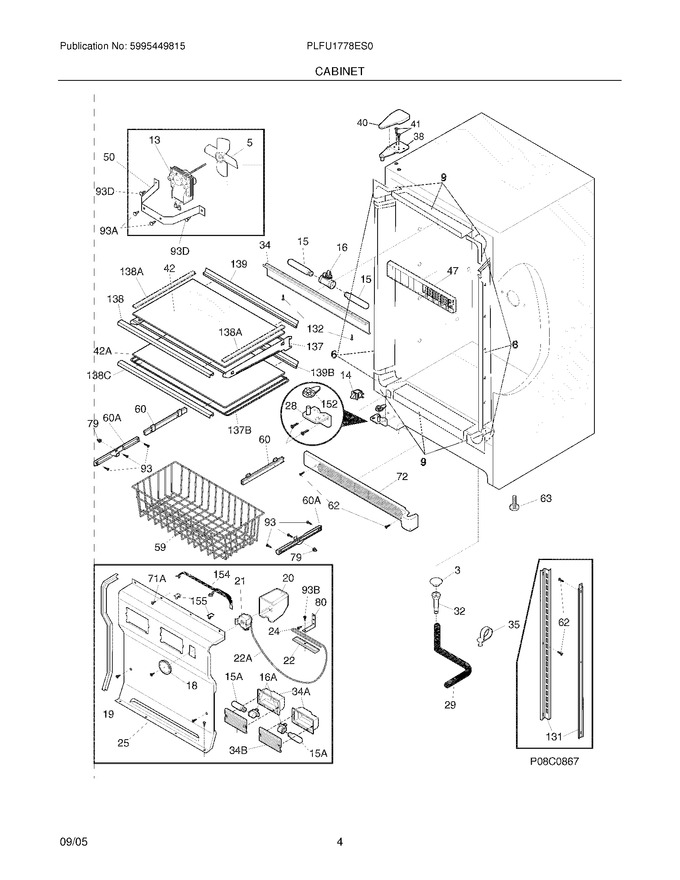

05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 216604200 | Breaker Kit W/corners |
|
$ 227.12 | |||||
| 9 | 216603300 | Breaker Kit W/corners,32`` ,top Or Bottom |
|
$ 94.19 | |||||
| 14 | 216922800 | Switch,light/lamp ,ramp |
|
$ 12.22 | |||||
| 15 | 5304517886 | Light Bulb/lamp,long ,blue Tint ,40 W ,120v,(2) (Replaces: 216988100) |
|
Immediately | $ 73.06 | ||||
| 16 | 241622802 | Socket-light (Replaces: 241507803) |
|
$ 65.93 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 35.74 | ||||
| 20 | 216967201 | Cover,temp Control (Replaces: 216967200) |
|
$ 15.18 | |||||
| 21 | 5304513033 | Control- Temperature (Replaces: 216715200) |
|
Immediately | $ 83.14 | ||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216949709 | Cover-evaporator |
|
- | |||||
| 28 | 216978201 | Hinge,bracket, Lower ,lh |
|
$ 117.02 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216979500 | Shield-light |
|
- | |||||
| 35 | 216629700 | Clip |
|
- | |||||
| 38 | 216939100 | Hinge-upper |
|
$ 59.54 | |||||
| 40 | 216809001 | Cover-upper Hinge,black |
|
$ 13.70 | |||||
| 41 | 216936800 | Screw-hinge,12-24x.700 Hwh |
|
- | |||||
| 42 | 297265900 | Glass-shelf,full Shelf (Replaces: 216983101) |
|
$ 156.15 | |||||
| 47 | 297053300 | Plate,baffle ,snap Fit |
|
- | |||||
| 50 | 216394050 | Bracket,fan Motor Mount (Replaces: 216394000) |
|
$ 22.75 | |||||
| 59 | 216939300 | Basket,(2) |
|
$ 118.07 | |||||
| 60 | 297013500 | Slide,shelf ,(2) |
|
$ 38.98 | |||||
| 62 | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 297036907 | Grille/kickplate,32`` ,black (Replaces: 297036901) |
|
$ 39.29 | |||||
| 79 | 301036 | Nut-insert (Replaces: 3017666) |
|
$ 15.90 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 12.05 | |||||
| 131 | 241513001 | Channel-shelf Mtg,side ,(2) |
|
$ 112.24 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| 137 | 297050600 | Frame-shelf,cantilever ,(2) |
|
Immediately | $ 179.29 | ||||
| 138 | 297050700 | Trim-shelf,front |
|
$ 44.94 | |||||
| 139 | 297050800 | Trim-shelf,rear |
|
$ 50.03 | |||||
| 152 | 216974600 | Bearing,hinge Closer |
|
$ 16.36 | |||||
| 154 | 297053000 | Wire,jumper |
|
$ 57.42 | |||||
| 155 | 30534600 | Clip,(2) (Replaces: 5303313703) |
|
$ 3.79 | |||||
| 15A | 241552802 | Light Bulb/lamp,short ,(2) (Replaces: 297048600) |
|
Immediately | $ 50.45 | ||||
| 16A | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 34A | 297053100 | Shield-light,lh |
|
- | |||||
| 34A | 297053101 | Shield-light,rh |
|
- | |||||
| 34B | 297053200 | Lens,light |
|
$ 43.95 | |||||
| 42A | 297007700 | Glass-shelf,sliding |
|
$ 138.96 | |||||
| 60A | 297054200 | Slide-basket,rh ,(2) ,w/4 Clips |
|
$ 180.73 | |||||
| 60A | 297054201 | Slide-basket,lh ,(2) ,w/4 Clips |
|
$ 601.06 | |||||
| 71A | 5304416289 | Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping (Replaces: 216629600) |
|
$ 13.01 | |||||
| 93B | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 93D | 216912400 | Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2) |
|
- | |||||
| F13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 55.32 | ||||
| F137 | 297007600 | Frame-shelf,sliding |
|
$ 118.93 | |||||
| F138 | 297007800 | Trim-shelf,front |
|
$ 36.67 | |||||
| F138 | 216983601 | Trim-shelf,side |
|
$ 47.92 | |||||
| F139 | 297007900 | Trim-shelf,rear |
|
$ 37.05 | |||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 216893600 | Plug,ice Maker ,internal |
|
- | |||||
| NI | 216901700 | Installation Instructions,icemaker |
|
- | |||||
| NI | 216893800 | Cover,external ,ice Maker ,(2) |
|
- | |||||
| NI | 240494001 | Plug,button ,cab Liner Holes ,(2) (Replaces: 240479601) |
|
Immediately | $ 18.20 | ||||
| NI | 297013100 | Instructions,water Line |
|
$ 3.55 | |||||
| NI | 241586701 | Plug-foam-wtr-inlet,round |
|
$ 17.72 | |||||
| NI | 216795408 | Energy Guide |
|
- | |||||
| NI | 297002600 | Gasket,light Socket |
|
- |
