SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

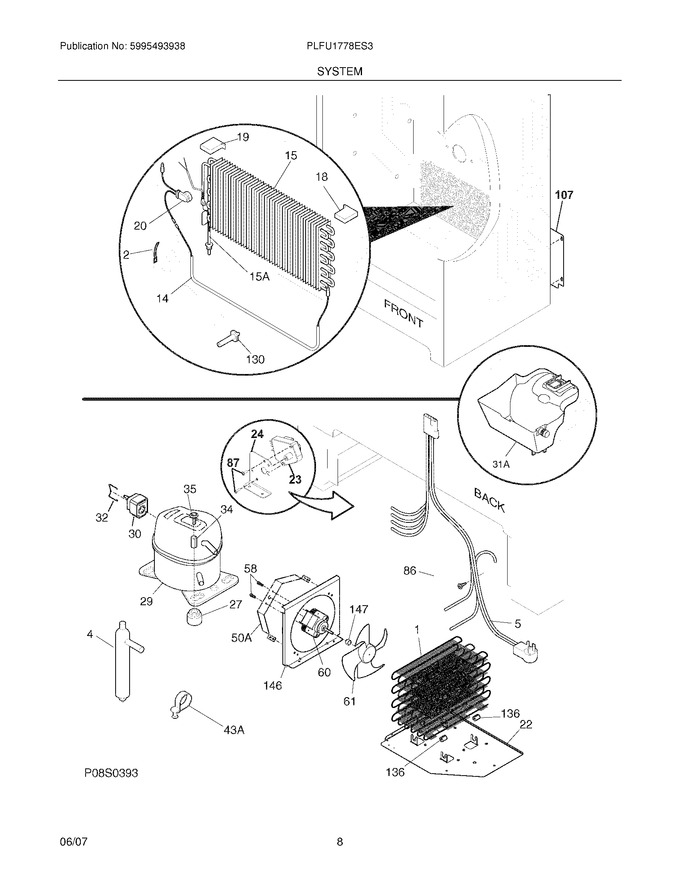

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
22	216970300		Base,condenser				$ 38.96
23	5304518034		Timer,defrost ,12 Hour   (Replaces: 216744400)			Immediately	$ 57.55
24	216968500		Bracket-timer		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297051003		Controller,compressor				$ 63.79
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08016582		Screw,hi-lo Blunt ,8-18 X 1/2		Appelez-nous	-
107	297124500		Panel,access		Appelez-nous	-
107	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
146	216970200		Shroud-fan Orfice				$ 104.90
147	240560001		Ring-compression		Appelez-nous	-
29No.	5304511983		Compressor,w/grommets ,w/o Electricals   (Replaces: 297068203)				$ 671.86
31A	216994102		Pan-drain   (Replaces: 216994100)				$ 30.53
43A	216629700		Clip		Appelez-nous	-
50A	240524001		Bracket,fan Motor Mount				$ 185.70
F1	216970100		Condenser				$ 106.74
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F15A	216783200		Heat Exchanger,suct/cap Tube			Immediately	$ 91.09
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297033600		Harness-main				$ 89.07
F60	5303918774		Motor,condensor Fan   (Replaces: 240525402)			Immediately	$ 186.30
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	216036601		Screw,quadrex ,8-32 X 0.300 ,grounding   (Replaces: 216347500)				$ 13.65
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
