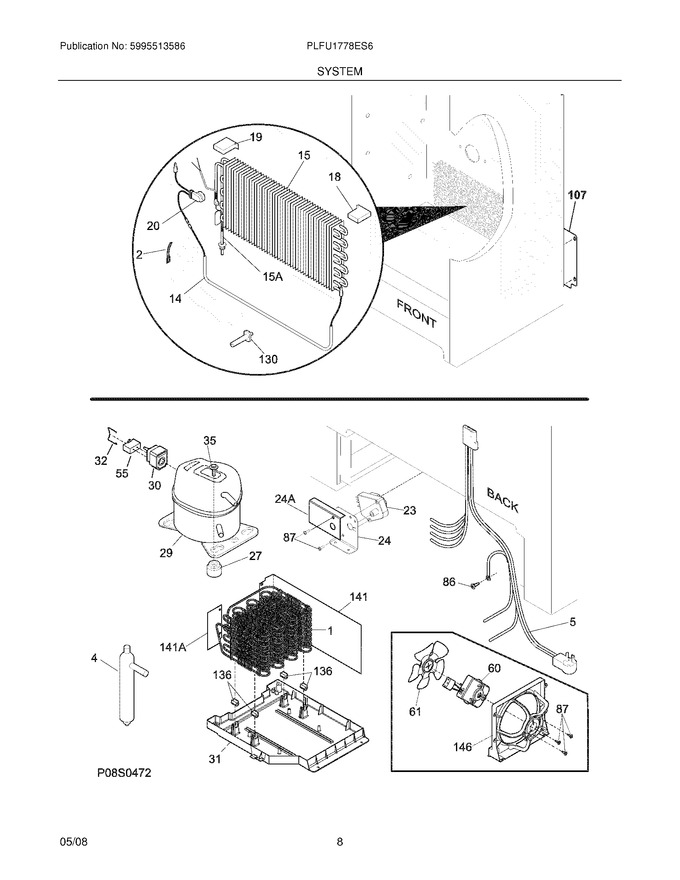

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297152201 | Condenser |
|
$ 172.79 | |||||
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 18 | 297078700 | Insulator-evap,styrofoam |
|
$ 8.14 | |||||
| 19 | 297078800 | Insulator-evap,styrofoam |
|
$ 2.32 | |||||
| 20 | 297216600 | Thermostat,defrost (Replaces: 216872200) |
|
Immediately | $ 27.52 | ||||
| 24 | 216968501 | Bracket-timer |
|
$ 74.70 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954216 | Controller,compressor |
|
$ 51.92 | |||||
| 31 | 297165800 | Pan-drain |
|
$ 89.15 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 35 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 60 | 297279500 | Motor-condenser Fan (Replaces: 241584301) |
|
Immediately | $ 141.66 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 87 | 5304463290 | Screw,hi-lo Blunt ,no.8-18x1/2 |
|
- | |||||
| 107 | 297165400 | Shield,compressor ,compartment |
|
$ 19.85 | |||||
| 130 | 297244700 | Support,evaporator Mtg |
|
$ 4.26 | |||||
| 136 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 141 | 297164200 | Divider,air Flow |
|
$ 26.23 | |||||
| 146 | 297164000 | Shroud-fan Orfice |
|
$ 76.97 | |||||
| 15A | 297217900 | Heat Exchanger,suct/cap Tube |
|
Immediately | $ 91.82 | ||||
| 24A | 297207900 | Guard,timer |
|
$ 5.72 | |||||
| F141A | 297194700 | Divider,small ,air Flow |
|
- | |||||
| F15 | 297414901 | Evaporator (Replaces: 216997300) |
|
Immediately | $ 171.34 | ||||
| F23 | 5304518034 | Timer-defrost (Replaces: 216744500) |
|
Immediately | $ 57.55 | ||||
| F29 | 5304511983 | Compressor Kit (Replaces: 5304465285) |
|
$ 671.86 | |||||
| F5 | 297171700 | Harness-main |
|
$ 57.04 | |||||
| F55 | 218909912 | Capacitor-run,220 Vac ,12 Microfarad |
|
Immediately | $ 74.75 | ||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 68.68 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| NI | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| NI | 297102800 | Spacer-tube |
|
- | |||||
| NI | 297014500 | Plug-suction Line |
|
- |
