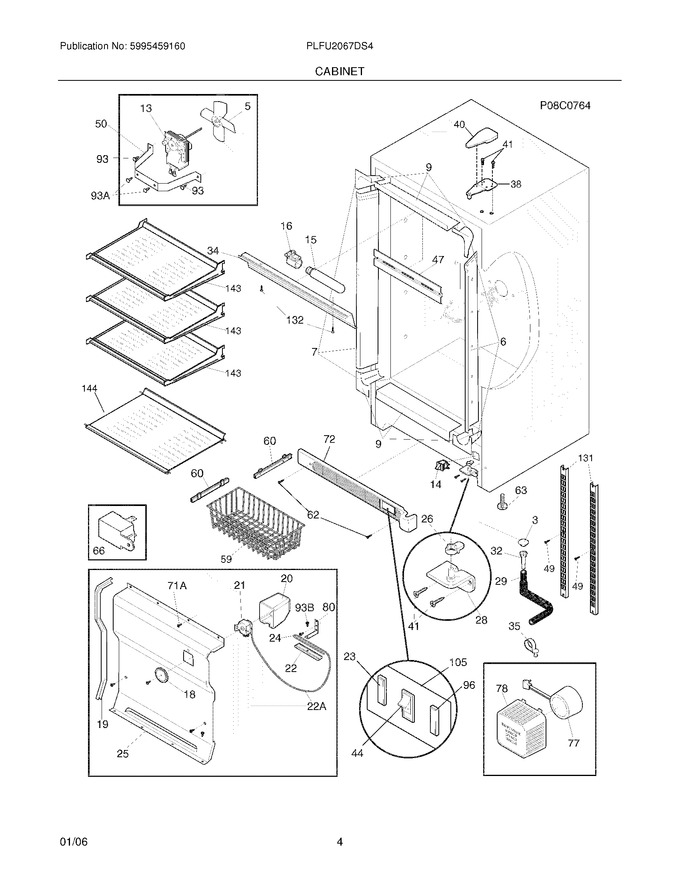

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216922800		Switch,light/lamp ,ramp				$ 12.22
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
19	216204901		Gasket-cover Evap				$ 9.08
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 83.14
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216820300		Cover-evaporator		Appelez-nous	-
26	216974600		Bearing,hinge Closer				$ 16.36
28	216978200		Hinge,bracket, Lower ,rh				$ 48.93
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816221		Shield-light		Appelez-nous	-
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	216809001		Cover-upper Hinge,black				$ 13.70
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
44	216823300		Switch-rocker				$ 47.15
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
49	5303212704		Screw,channel Door		Appelez-nous	-
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
59	216932600		Basket,full Access ,(2)		Appelez-nous	-
60	216936700		Slide-basket,rh ,(2)		Appelez-nous	-
60	216936701		Slide-basket,lh ,(2)		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
66	216713700		Buzzer,alarm				$ 74.60
72	216946801		Grille/kickplate,32`` ,black		Appelez-nous	-
78	297013300		Housing-sensor		Appelez-nous	-
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
96	08016772		Light-signal,red		Appelez-nous	-
105	216926604		Bracket,alarm, 2 Lights		Appelez-nous	-
105	216926701		Shield,elec Base Panel		Appelez-nous	-
131	216484900		Channel-shelf Mtg,back		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
143	216904400		Shelf,cantilever ,(3) ,complete Assy				$ 211.59
144	216922300		Shelf-assy,fixed,glass ,complete		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
93B	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
F77	5308037992		Sensor Assy				$ 167.58
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216893600		Plug,ice Maker ,internal		Appelez-nous	-
NI	216901700		Installation Instructions,icemaker		Appelez-nous	-
NI	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216795509		Energy Guide		Appelez-nous	-
