Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61002205 Tunnel, Air 10 Appelez-nous -
2 61001993 Cover, Evaporator 10 Appelez-nous -
2 WP489474 Screw   (Replaces: 61002429) 10 In-Stock Immediately $ 7.17

2 61001952 Plug Button, Evap. Cover 10 Appelez-nous -
3 61001967 Seal, Foam (ctr.) 10 Appelez-nous -
3 61004583 Seal, Evaporator Cover 10 Appelez-nous -
4 61004856 Tray, Drip 10 Appelez-nous -
4 61004832 Barrier, Foil 10 Appelez-nous -
5 61001935 Blade, Evaporator Fan 10 Appelez-nous -
6 61001930 Bracket, Evaporator Fan 10 Appelez-nous -
6 WP489399 Screw   (Replaces: 61005240) 10 Special Order $ 6.26

7 WP61004888 Motor, Evaporator Fan   (Replaces: 61004888) 10 In-Stock Immediately $ 104.99

8 61004834 Clip, Defrost Heater 10 Appelez-nous -
9 WP61001946 Heater, Defrost   (Replaces: 61001946) 10 Special Order $ 137.52

10 61002143 Support, Frz. Shelf (rear) 10 Appelez-nous -
10 61002142 Support, Frz. Shelf (frt) 10 Appelez-nous -
11 61004836 Support, Evaporator (rt) 10 Appelez-nous -
11 61004835 Support, Evaporator (lt) 10 Appelez-nous -
12 WP61005254 Thermostat, Defrost   (Replaces: 61005254) 10 In-Stock Immediately $ 103.09

13 61005340 Retainer, Evaporator Fan 10 Appelez-nous -
13 61002234 Retainer, Evaporator Fan 10 Appelez-nous -
13 WP489399 Screw   (Replaces: 61005240) 10 Special Order $ 6.26

14 12001396 Evap/heat Exch. Assy. 15 & 17` 10 Special Order $ 233.00

15 WP61002140 Tray, Ice   (Replaces: 61002140) 10 Special Order $ 18.23

16 61002141 Shelf, Freezer 10 Appelez-nous -
17 61005015 Plug Button, Ice Maker 10 Appelez-nous -
18 61002026 Cap, Fill Tube 10 Appelez-nous -
19 61002027 Cap, I/m Wire Harness 10 Appelez-nous -
20 61005341 Bushing, Evaporator Fan 10 Special Order $ 18.17

20 61002235 Bushing, Evaporator Fan 10 Appelez-nous -
21 61002177 Pan, Ice 10 Appelez-nous -
22 61005558 Wire Harness, Frz. 10 Appelez-nous -
22 61002321 Wire Harness, Freezer 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

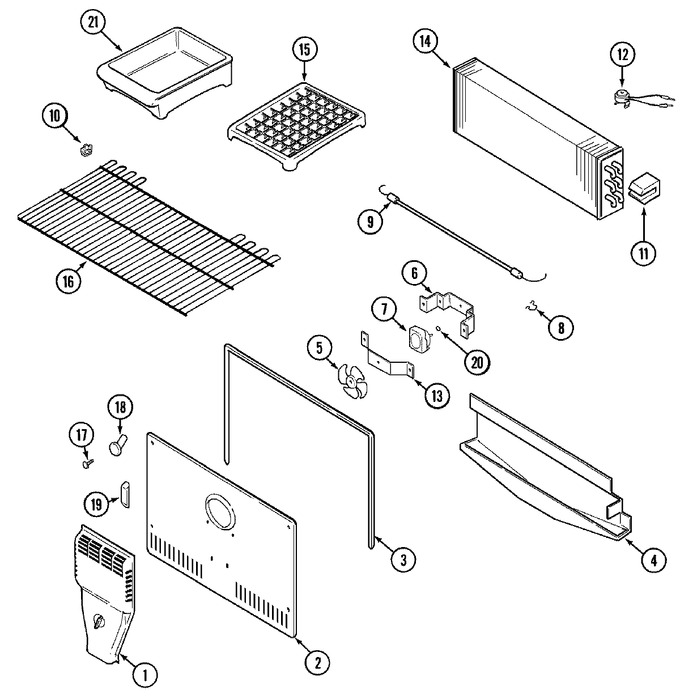

Diagram for PTB1753GRQ
