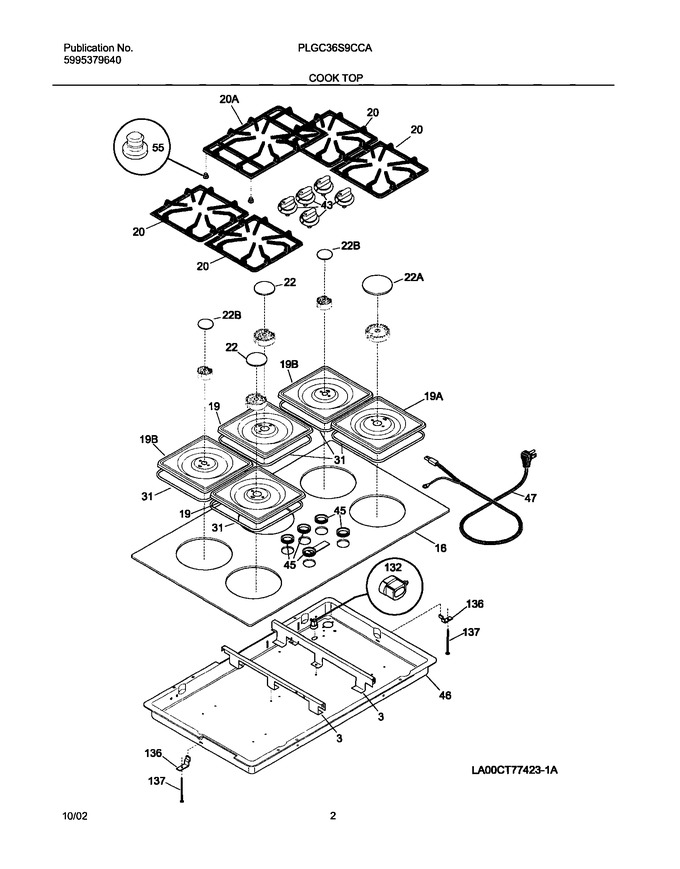

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Support		Appelez-nous	-
16	318191610		Main Top,stainless ,w/nameplate		Appelez-nous	-
19	318168114		Pan,burner ,black ,medium				$ 151.68
20	318120303		Grate,burner ,black		Appelez-nous	-
22	316213500		Cap,burner ,black ,medium Lf & Lr   (Replaces: 318076410)				$ 43.23
31	318053901		Gasket,burner Pan				$ 33.60
43	318099100		Knob,control ,black ,(5)				$ 123.62
45	318146200		Bushing		Appelez-nous	-
46	318077003		Box,burner		Appelez-nous	-
55	318096700		Spacer,center Grate		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318168124		Pan,burner ,black ,large				$ 140.67
19B	318168104		Pan,burner ,black ,small				$ 155.93
20A	318188710		Grate,black ,center		Appelez-nous	-
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
F47	5303303991		Cord-electric Power				$ 96.50
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
