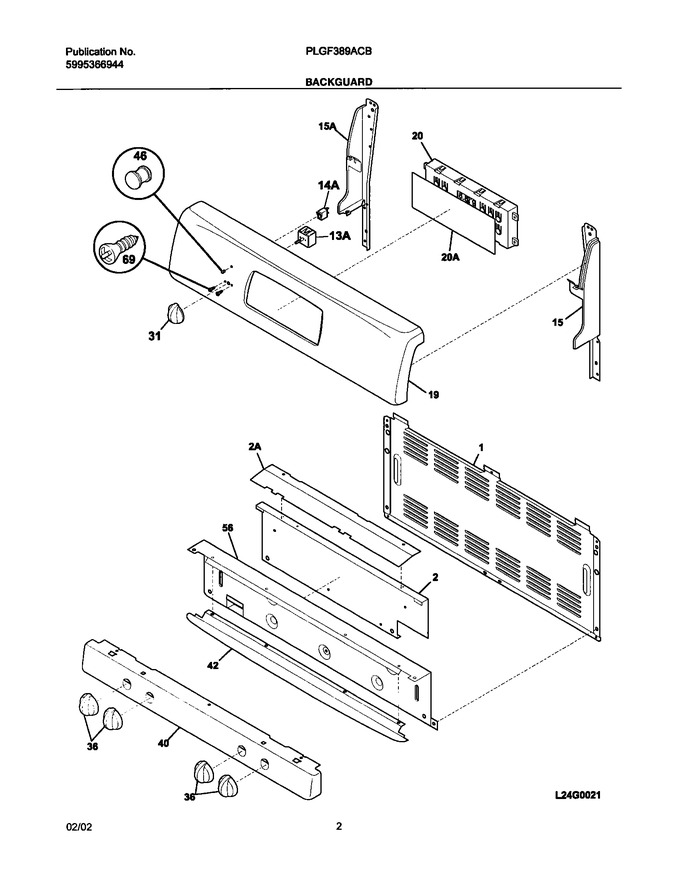

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220204		Support,backguard ,black ,rh		Appelez-nous	-
19	316232679		Panel,backguard ,stainless		Appelez-nous	-
31	316223002		Knob,black			Immediately	$ 57.64
36	316220002		Knob,top Valve ,black ,(4)			Immediately	$ 56.70
40	316249000		Panel,manifold ,stainless Steel		Appelez-nous	-
42	316236600		Trim,extrusion ,black		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
14A	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15A	316220205		Support-backguard,black ,lh		Appelez-nous	-
20A	318214601		Overlay,clock ,black   (Replaces: 316243301)				$ 57.41
2A	316235100		Shield-top Inner		Appelez-nous	-
F13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F20	316248003		Clock/timer,eoc		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
