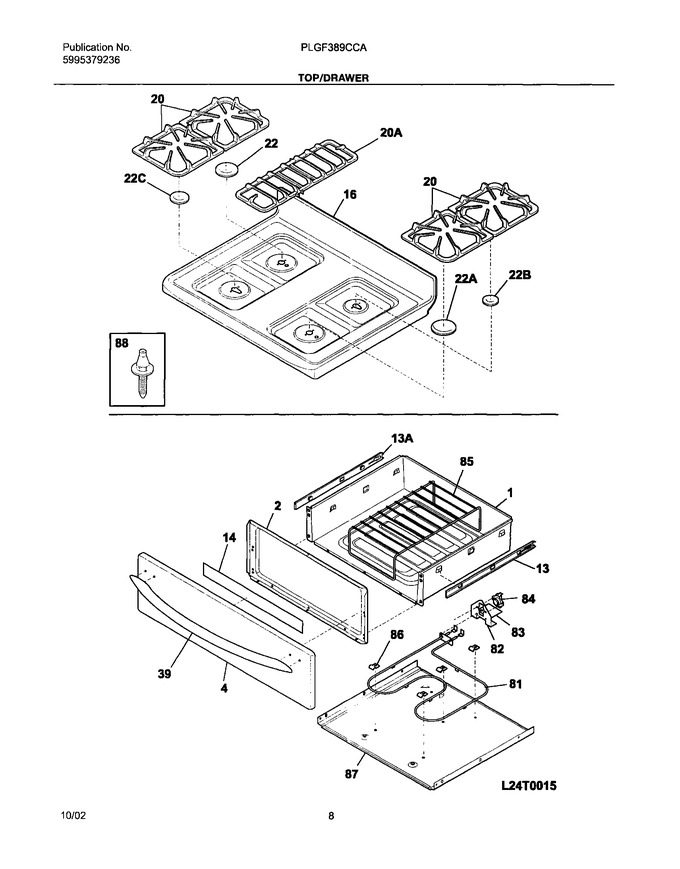

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316115901		Drawer,warmer		Appelez-nous	-
2	316231403		Liner,drawer		Appelez-nous	-
4	316238901		Panel,drawer ,stainless		Appelez-nous	-
13	316231700		Glide,drawer ,rh Inner				$ 61.91
14	316102211		Foil,2`` X 19`` ,aluminum ,clear		Appelez-nous	-
16	316202326		Main Top,black		Appelez-nous	-
20	316248500		Grate,black ,(4)				$ 95.41
22	316213600		Cap,12k Burner ,black				$ 130.08
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093501		Thermo Disc,warmer Drawer				$ 107.10
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316231701		Glide,drawer ,lh Inner				$ 65.73
20A	316239800		Grate,black ,center		Appelez-nous	-
22A	316213700		Cap,14k Burner ,black				$ 112.35
22B	316206600		Cap,5k Burner ,black				$ 96.39
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
F81	316437300		Element,warmer Drawer   (Replaces: 316239201)				$ 106.17
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001917		Harness-warmer Drawer				$ 66.31
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
