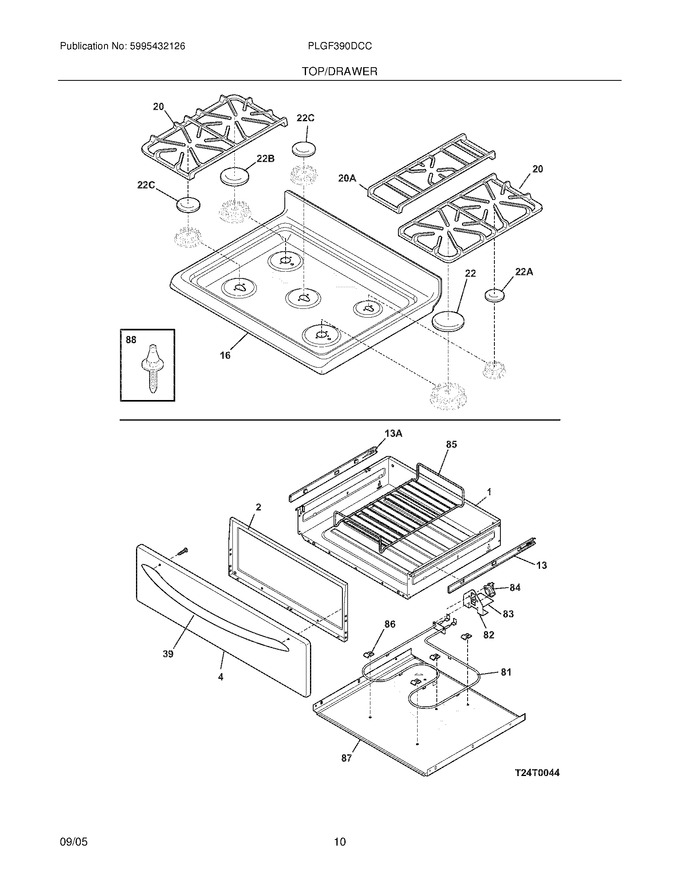

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 143.45
2	5304527988		Liner,black ,drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	316409302		Panel,drawer ,stainless ,outer		Appelez-nous	-
13	316415000		Glide,warmer ,inner Rh				$ 58.82
16	316411216		Maintop,black				$ 223.13
22	316271900		Cap,16k Burner ,black				$ 170.91
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093501		Thermo Disc,warmer Drawer				$ 107.10
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
20A	316424403		Grate,black ,center				$ 533.28
22A	316206600		Cap,5k Burner ,black				$ 96.39
22B	316213600		Cap,12k Burner ,black				$ 130.08
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
F20	316424203		Grate,black ,(2)				$ 355.67
F81	316437300		Element,warmer Drawer   (Replaces: 316239201)				$ 106.17
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001917		Harness-warmer Drawer				$ 66.31
NI	316279700		Cleaner,stainless Steel		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
