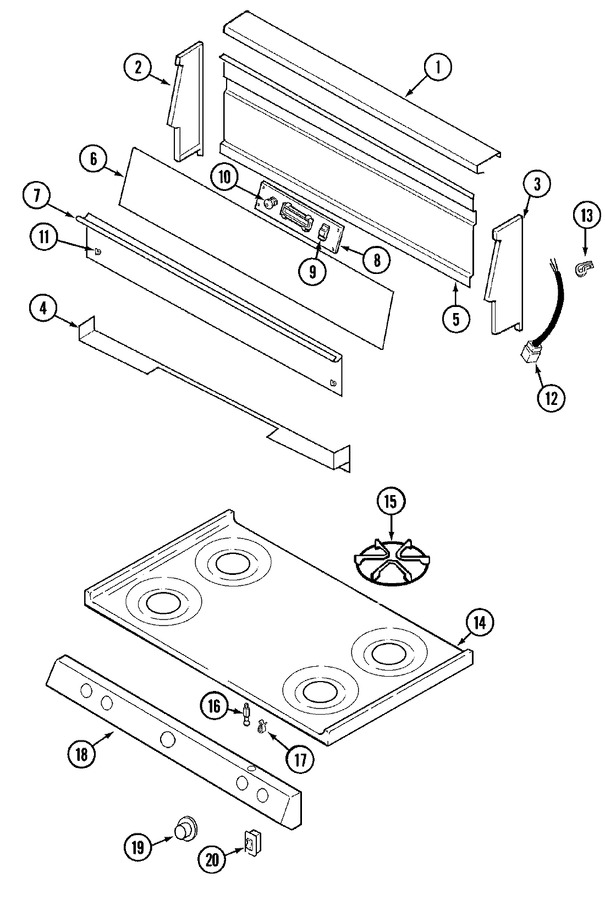

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72001074		Cover, Control Panel (stnls)	10	Appelez-nous	-
2	72001075		End Cap, Control Panel (lt)	10	Appelez-nous	-
3	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
3	7101P321-60		Screw	10	Appelez-nous	-
3	72001076		End Cap, Control Panel (rt)	10	Appelez-nous	-
4	72001124		Support, Control Panel	10	Appelez-nous	-
5	72001077		Back, Control Panel	10	Appelez-nous	-
6	72001078		Panel, Control (glass)	10	Appelez-nous	-
7	72001079		Panel, Lower Front (stnls)	10	Appelez-nous	-
8	72001125		Clock	10	Appelez-nous	-
9	72001126		Button, Slide	10	Appelez-nous	-
10	72001080		Button, Push	10	Appelez-nous	-
11	72001081		Pin, Top Hinge	10	Appelez-nous	-
12	72001083		Harness, Control Panel	10	Appelez-nous	-
13	1555240		1/4`` Wire Nut	10	Appelez-nous	-
13	7111P007-60		Clamp, Wire	10	Appelez-nous	-
14	72001024		Top, Main (alm)	10	Appelez-nous	-
15	72001151		Bowl, Drip	10	Appelez-nous	-
15	72001002		Grate	10	Appelez-nous	-
16	72001026		Strike	10	Appelez-nous	-
16	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
17	8002P022-60		Spring, Catch - Female	10	Appelez-nous	-
18	72001013		Panel, Manifold (blk)	10	Appelez-nous	-
18	72001014		Insert, Manifold Panel	10	Appelez-nous	-
19	72001103		Knob, Thermostat	10	Appelez-nous	-
19	72001120		Knob, Valve	10	Appelez-nous	-
20	72001070		Switch, Oven Light	10	Appelez-nous	-
