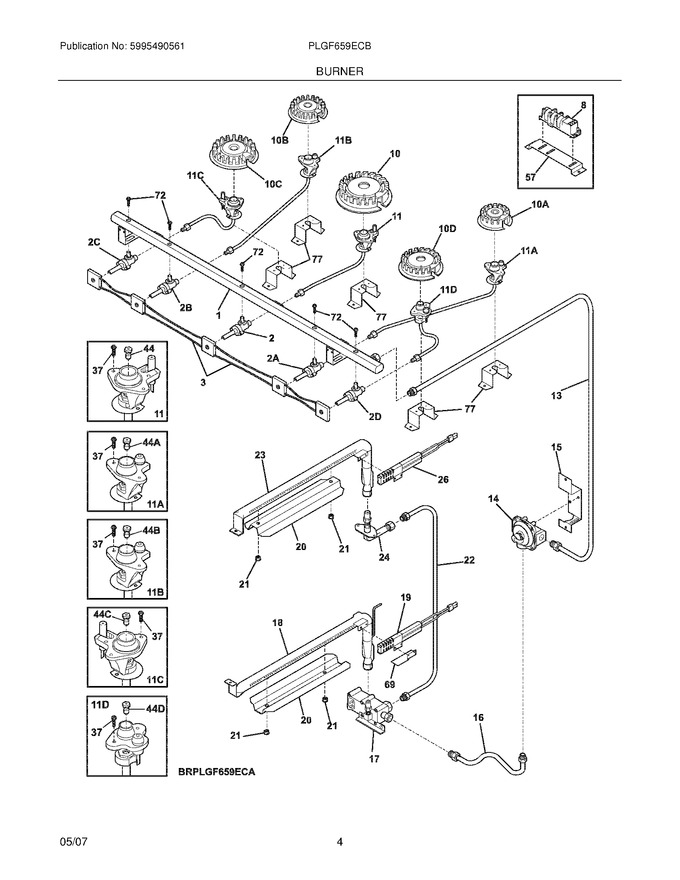

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
13	318054511		Tube,connection ,manifold		Appelez-nous	-
15	318262810		Bracket,regulator		Appelez-nous	-
16	318054512		Tube,regulator ,to Safety		Appelez-nous	-
19	5303935066		Ignitor,oven Burner   (Replaces: 318177720)			Immediately	$ 59.58
20	5308011508		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
22	318249301		Tube		Appelez-nous	-
26	318177730		Ignitor,broil Burner		Appelez-nous	-
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237912		Orifice,top Burner ,16k		Appelez-nous	-
57	318340500		Bracket,spark Module		Appelez-nous	-
69	3131871		Shield Oven Ignitor				$ 7.93
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318192606		Bracket,burner Mtg ,(4)		Appelez-nous	-
44A	316237903		Orifice-top Burner,5k				$ 67.83
44B	316237902		Orifice,top Burner ,9.5k				$ 65.22
44C	316237900		Orifice,top Burner ,14k				$ 63.80
44D	316237901		Orifice,top Burner ,12k				$ 64.46
F1	318315700		Manifold Pipe		Appelez-nous	-
F10	316223300		Burner,sealed ,16/17k				$ 117.66
F10A	316206400		Burner,sealed ,5k		Appelez-nous	-
F10B	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F10C	316223400		Burner,sealed ,14k				$ 94.50
F10D	316212300		Burner,sealed ,12k				$ 105.95
F11	318221357		Ignitor/orifice Assy.,top Burner ,center,17k ,w/holder ,tube		Appelez-nous	-
F11A	318221351		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube				$ 197.56
F11B	318221352		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube		Appelez-nous	-
F11C	318221354		Ignitor/orifice Assy.,top Burner ,left Front,14k ,w/holder ,tube		Appelez-nous	-
F11D	318221355		Ignitor/orifice Assy.,top Burner ,right Front,12k ,w/holder ,tube		Appelez-nous	-
F14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
F17	316031400		Valve-safety		Appelez-nous	-
F18	5303311544		Burner-oven				$ 355.09
F2	318234021		Valve,top Burner ,17k				$ 121.38
F23	5303311548		Burner,oven Broil		Appelez-nous	-
F24	5303311547		Elbow,mixer		Appelez-nous	-
F2A	318234025		Valve,top Burner ,5k				$ 121.38
F2B	318234024		Valve,top Burner ,9.5k				$ 127.73
F2C	318234022		Valve,top Burner ,14k				$ 121.38
F2D	318234023		Valve,top Burner ,12k				$ 121.38
F3	318232613		Wiring Harness,w/igntr Switch				$ 178.97
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
NI	318199745		Wiring Harness,spark Module		Appelez-nous	-
NI	318186912		Lp Conversion Kit		Appelez-nous	-
NI	5303324193		Bushing,snap ,nylon		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
