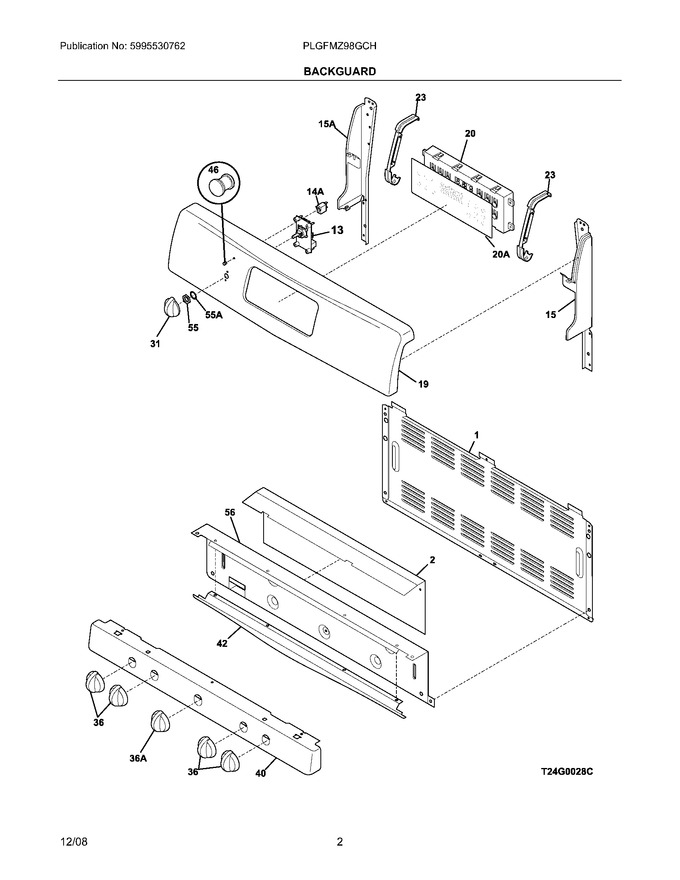

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
13	316414406		Control,bake ,mini Oven   (Replaces: 316414405)				$ 206.61
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316436231		Panel,control ,alum		Appelez-nous	-
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
31	316223019		Knob,control ,black				$ 45.65
36	316220009		Knob,top Valve ,black ,4				$ 55.36
40	316249031		Panel,manifold ,stainless Steel				$ 158.71
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
55	316247700		Nut,mounting				$ 18.20
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419700		Overlay,clock ,black ,w/mini Oven ,es510				$ 51.60
36A	316220002		Knob,top Valve ,black			Immediately	$ 56.70
55A	316247800		Washer,lock ,mtg				$ 18.20
F20	316462801		Clock/timer,electronic ,es530		Appelez-nous	-
FNI	316525611		Harness, Mini Oven		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
