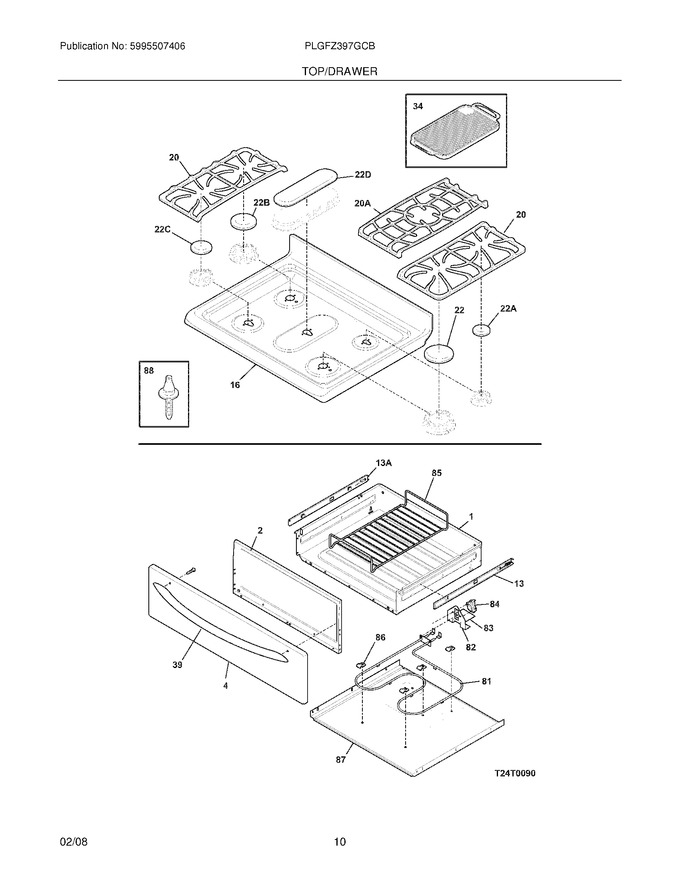

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 143.45
2	5304527988		Liner,black ,drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	5304494412		Panel,drawer ,stainless ,outer   (Replaces: 316409307)				$ 98.53
13	316415000		Glide,warmer ,inner Rh				$ 58.82
16	316411243		Maintop,black				$ 154.67
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	316271904		Cap,16/17k Burner ,black				$ 206.11
34	316499900		Griddle				$ 114.83
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093501		Thermo Disc,warmer Drawer				$ 107.10
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
20A	316499602		Grate,black ,center				$ 248.85
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213605		Cap,12k Burner ,black				$ 143.06
22C	316213505		Cap,9.5k Burner ,black ,(2)				$ 102.30
22D	316532103		Cap,9.5k Burner ,oval ,black ,center				$ 124.85
F81	316437300		Element,warmer Drawer				$ 106.17
FNI	316001917		Harness-warmer Drawer				$ 66.31
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
