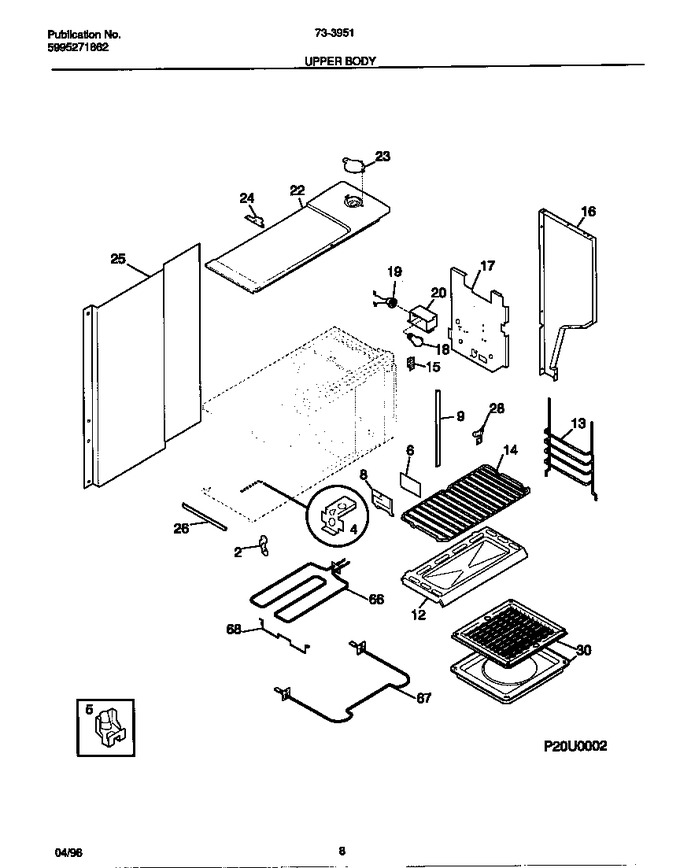

05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3051166		Hinge-door		Appelez-nous	-
4	08011665		Plate-bottom Hinge		Appelez-nous	-
5	5303284616		Clip-thermo Bulb				$ 9.86
6	08011668		Glass-oven Light Lens		Appelez-nous	-
8	08011669		Cover-light, Upper		Appelez-nous	-
9	5303934092		Seal-door		Appelez-nous	-
12	08016605		Bottom-oven		Appelez-nous	-
13	5303934091		Glide-oven Rack		Appelez-nous	-
14	08011675		Rack-oven, Flat		Appelez-nous	-
16	5303269987		Panel-bodyside, White, Lh (not Illustrated)		Appelez-nous	-
16	3051263		Panel-bodyside, White, Rh		Appelez-nous	-
17	5303208706		Shield-wool		Appelez-nous	-
18	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
19	3014073		Socket-light/lamp, Oven		Appelez-nous	-
20	5303290773		Box-light		Appelez-nous	-
22	3131625		Panel-top, Upper		Appelez-nous	-
23	08067732		Cover-outlet		Appelez-nous	-
24	3131613		Hinge Assy		Appelez-nous	-
25	3051236		Back-main		Appelez-nous	-
26	5303293168		Angle-stiffener		Appelez-nous	-
28	316012800		Strike-door		Appelez-nous	-
30	5300279979		Pan-broiler, Complete		Appelez-nous	-
66	3015187		Element-broil, Upper		Appelez-nous	-
67	5303307010		Element-bake		Appelez-nous	-
68	3015584		Support-element, Upper		Appelez-nous	-
*10251	3015588		Insulation, Oven Top		Appelez-nous	-
*10252	3015590		Insulation, Oven Bottom		Appelez-nous	-
*10253	3015591		Insulation, Oven Wrapper		Appelez-nous	-
*10254	3204440		Reflector, Aluminum Foil		Appelez-nous	-
*10255	5303051818		Screw, Wave Guide/door Hinge, 8, 18 X 1/2		Appelez-nous	-
*10256	5303285171		Screw-hinge Pin		Appelez-nous	-
*10257	3051467		Harness-wiring, Upper Element		Appelez-nous	-
*10258	5303203651		Fuse, Thermal Cutout				$ 77.86
