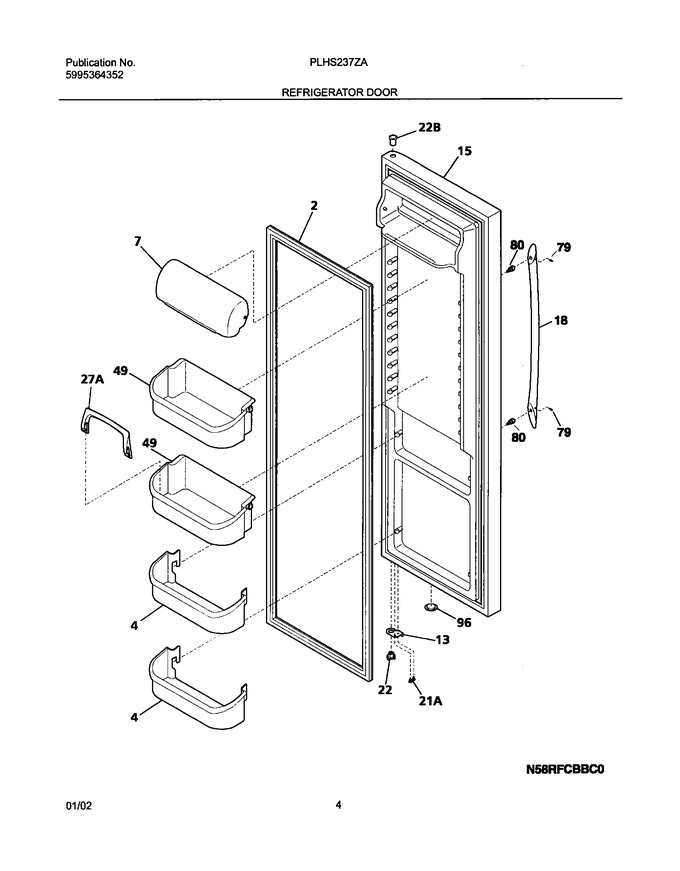

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363702		Bin-door,2-liter			Immediately	$ 76.40
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	5303918455		Door Stop,black ,ref   (Replaces: 240456905)				$ 142.04
15	240451923		Door-refr,stainless Steel ,complete Assy		Appelez-nous	-
18	240409801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
49	240324502		Bin-door,gallon   (Replaces: 240430303)			Immediately	$ 102.61
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755501)			Immediately	$ 18.60
96	240345506		Plug,door Foam Hole ,black				$ 51.87
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22B	240328403		Bearing-hinge,upper				$ 14.85
27A	240396102		Retainer,tall Bottle				$ 19.13
F2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 240390607)			Immediately	$ 94.66
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	240449704		Nameplate,black				$ 72.54
