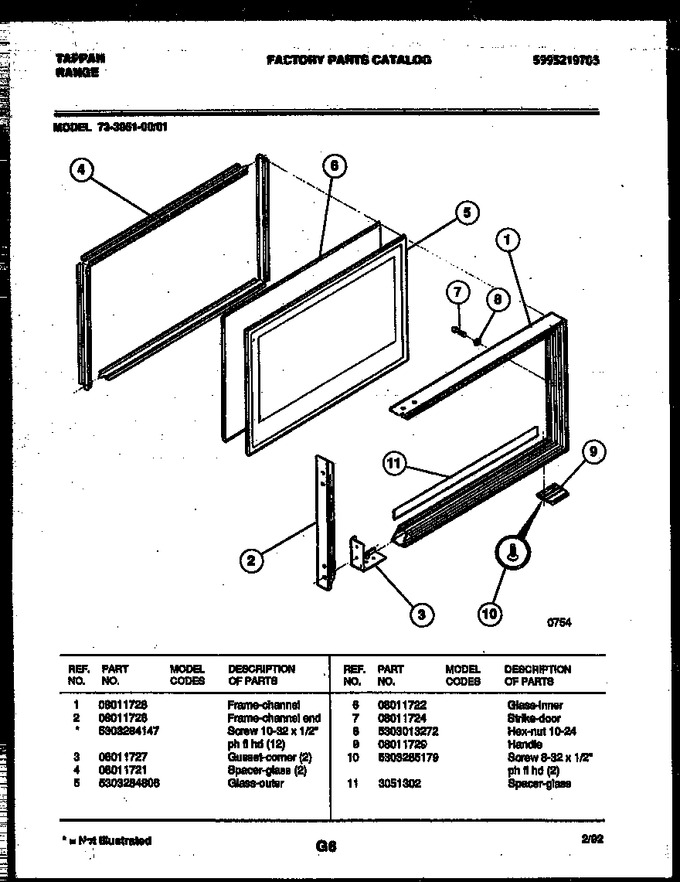

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011728 | Frame-channel |
|
- | |||||
| 2 | 08011726 | Frame-channel End |
|
- | |||||
| 3 | 08011727 | Gusset-corner (2) |
|
- | |||||
| 4 | 08011721 | Spacer-glass (2) |
|
- | |||||
| 5 | 5303284806 | Glass-outer |
|
- | |||||
| 6 | 08011722 | Glass-inner |
|
- | |||||
| 7 | 08011724 | Strike-door |
|
- | |||||
| 8 | 154079601 | Hex-nut 10-24 (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 9 | 08011729 | Handle |
|
- | |||||
| 10 | 5303285179 | Screw 8-32 X 1/2`` Ph Fl Hd (2) |
|
$ 13.46 | |||||
| 11 | 3051302 | Spacer-glass |
|
- | |||||
| 2A | 5303284147 | Screw 10-32 X 1/2`` Ph Fl Hd (12) (non-illustrated) |
|
- |
