SELECT A DIAGRAM

01 - Compressor (ptb2454grb/q Rev 14)


02 - Compressor (rev 10)


03 - Controls


04 - Freezer Compartment


05 - Freezer Inner Door


06 - Freezer Outer Door


07 - Fresh Food Inner Door


08 - Fresh Food Outer Door


09 - Optional Ice Maker Kit-uki1500axx


10 - Shelves & Accessories


11 - Wiring Information

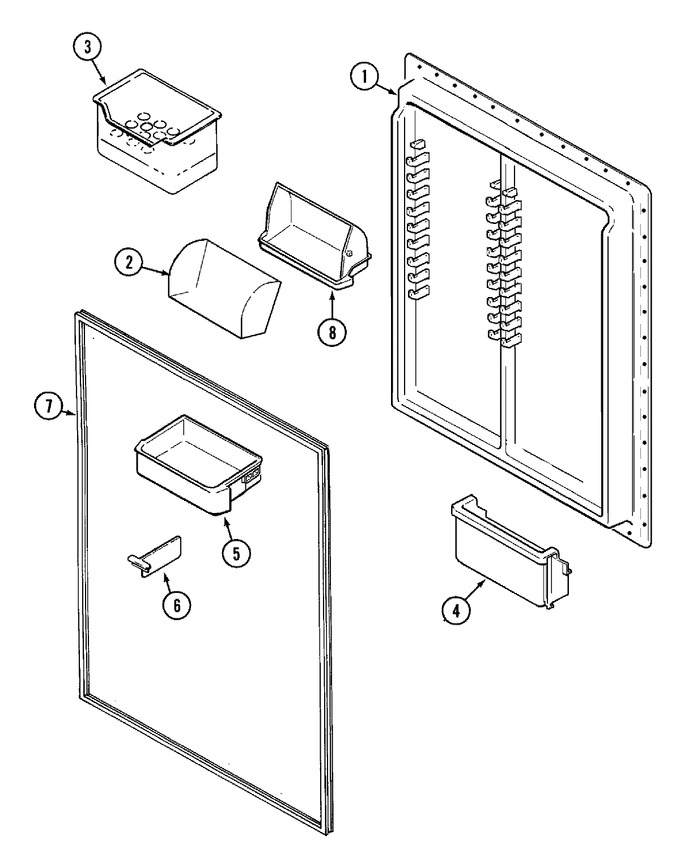

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005388		Screw	10			$ 11.43
1	61005184		Liner, F.f. Door	10	Appelez-nous	-
1	61002742		Insert, Liner Support	10	Appelez-nous	-
1	61002741		Insert, Liner Support	10			$ 30.66
2	61002666		Door, Dairy	10	Appelez-nous	-
3	67215-2		Tray, Egg	10	Appelez-nous	-
4	61002667		Bucket, Tip Out	10	Appelez-nous	-
5	61005137		Shelf, Pick-off	10	Appelez-nous	-
6	61002274		Organizer, Shelf	10	Appelez-nous	-
7	WP61004017		Seal, F.f. Door (blk)   (Replaces: 61004017)	10			$ 290.87
8	61002668		Shelf, P.o. Dairy	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
