SELECT A DIAGRAM

01 - Cover

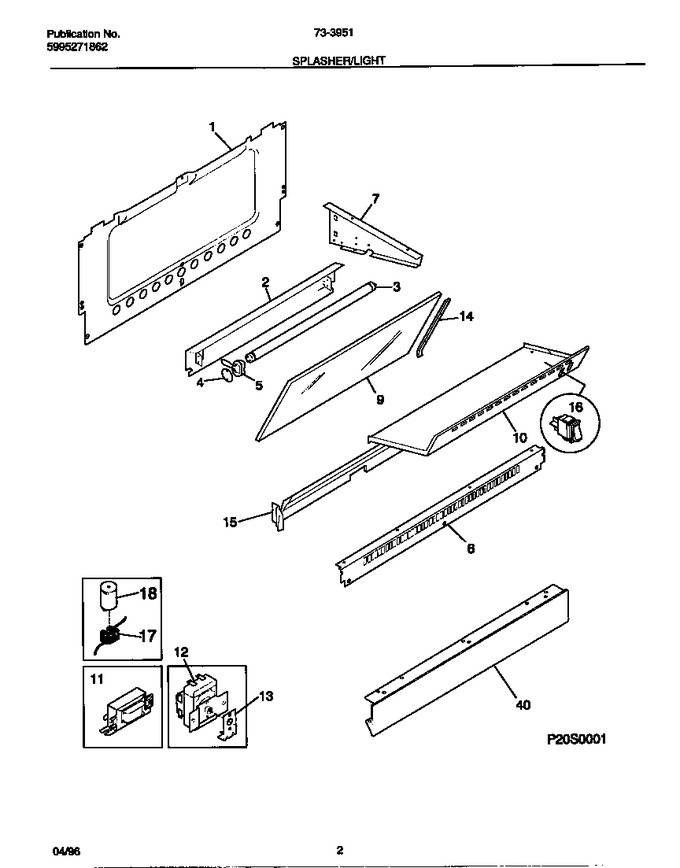

02 - Splasher/light


03 - Control Panel


04 - Lower Body


05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204441		Panel-back		Appelez-nous	-
2	5303208612		Reflector, Work Light		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303935003		Receptacle-lamp		Appelez-nous	-
6	3051465		Trim Vent		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
10	316012900		Panel-splasher-upper		Appelez-nous	-
11	5303051115		Ballast-lamp		Appelez-nous	-
12	08067742		Thermostat-oven, Sc		Appelez-nous	-
13	3051348		Angle-s/c Bracket		Appelez-nous	-
15	5303209039		Trim-splasher Filler		Appelez-nous	-
16	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
17	5303282715		Receptacle-starter		Appelez-nous	-
18	3206218		Starter-lamp				$ 54.08
40	316062346		Panel-manifold		Appelez-nous	-
*10240	08067960		Fastener, Clip Cable		Appelez-nous	-
14A	08010549		Trim-splasher, Rh		Appelez-nous	-
14B	5303269815		Trim-splasher, Lh (not Illustrated)		Appelez-nous	-
7A	3200526		Support-upper Oven, Rh		Appelez-nous	-
7B	3200527		Support-upper Oven, Lh (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
