Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61005749 Screw 11 Appelez-nous -
1 61005549 Liner, F.f. Door 11 Appelez-nous -
1 61002742 Insert, Liner Support 11 Appelez-nous -
1 61002741 Insert, Liner Support 11 Special Order $ 30.66

2 61002593 Door, Dairy 11 Appelez-nous -
3 67215-2 Tray, Egg 11 Appelez-nous -
4 61005136 Front, Pick-off 11 Special Order $ 118.68

5 61005550 Front, Pick-off 11 Special Order $ 80.97

7 WP61004010 Seal, F.f. Door (wht)   (Replaces: 61004010) 11 Special Order $ 296.04


    View Diagram in Separate Window     Print Icon   Print Part List

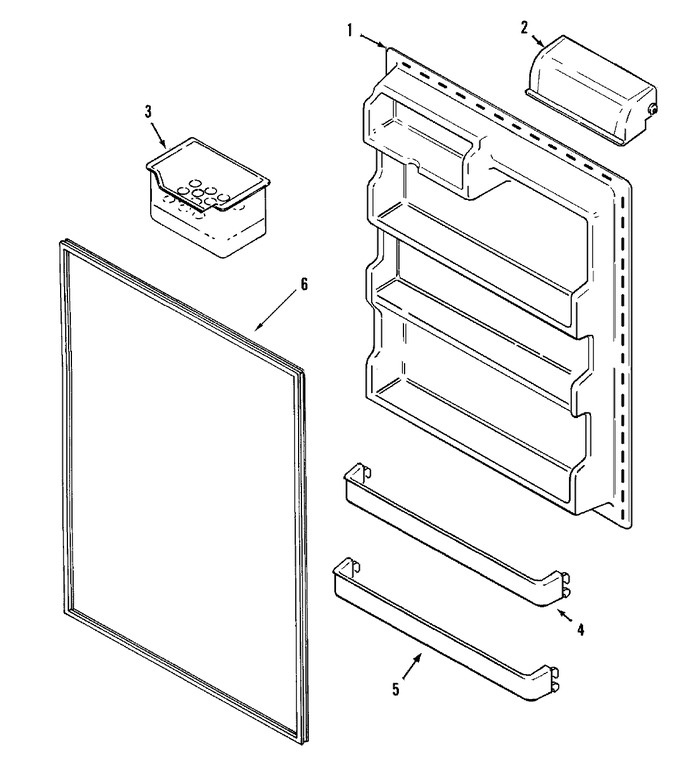

Diagram for PTF216LHRW
