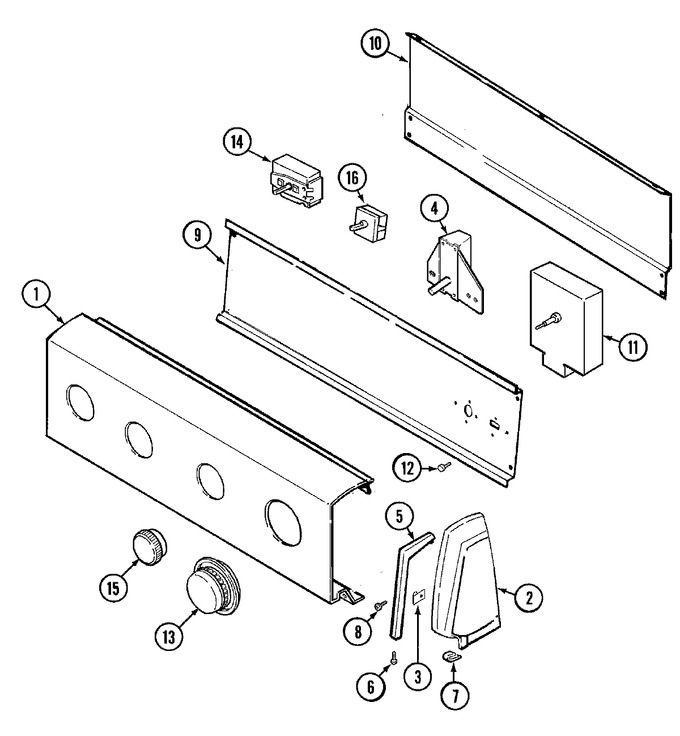

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001322		Panel, Control (wht)	10	Appelez-nous	-
2	35-2668		Cap, End (rt)(wht)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	35-2669		Cap, End (lt)(wht)	10	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	53-1666		Buzzer - Adjustable	10	Appelez-nous	-
5	31001054		Trim, Endcap (rt Wht)	10	Appelez-nous	-
5	31001055		Trim, Endcap (lt Wht)	10	Appelez-nous	-
6	25-7760		Screw	10	Appelez-nous	-
7	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
8	25-7649		Screw	10	Appelez-nous	-
9	31001193		Pad, Shield	10	Appelez-nous	-
9	31001128		Shield, Control	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
11	WP31001513		Timer   (Replaces: 53-1815)	10			$ 340.49
11	63-6743		Resistor Assy.	10	Appelez-nous	-
12	WP90767		Screw   (Replaces: 31001119)	10		Immediately	$ 7.04
13	31001195		Knob & Skirt Assy. (wht)	10	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
14	31001236		Switch, Temperature	10	Appelez-nous	-
15	21001409		Knob, Selector (wht)	10	Appelez-nous	-
16	31001190		Switch, Two Position Rotary	10			$ 52.56
16	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
17	31001323		Manual, Use & Care	10	Appelez-nous	-
17	31001339		Manual, Use & Care (fch)	10	Appelez-nous	-
18	16000326		Guide, Quick Ref - Jenn-air	10	Appelez-nous	-
19	12002417		Wire Kit (herrin Laundry)	10			$ 26.25
