01 - Cabinet

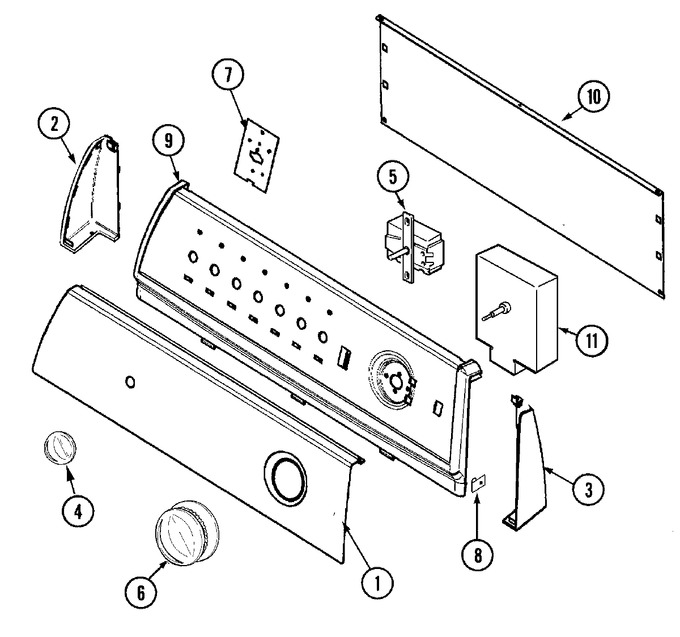

02 - Control Panel
03 - Door
04 - Door (series 11)
05 - Heater
06 - Motor & Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001472 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 21001641 | End Cap (lt-wht) | 10 |
|
- | ||||
| 3 | 21001630 | End Cap (rt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 21001525 | Knob, Selector (wht) | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 31001449 | Switch, Selector | 10 |
|
$ 78.78 | ||||
| 6 | WP37001184 | Knob/skirt, Timer (wht) (Replaces: 31001385) | 10 |
|
Immediately | $ 51.24 | |||
| 7 | 53-2504 | Spacer, Control Shield | 10 |
|
- | ||||
| 7 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 7 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 8 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 9 | 21001604 | Frame, Control Panel (wht) | 10 |
|
- | ||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 11 | 53-2392 | Timer | 10 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 31001069 | Resistor Assy. | 10 |
|
- | ||||
| 12 | 31001471 | Manual, Use & Care | 10 |
|
- | ||||
| 12 | 21001419 | Manual, Laundering Tips | 10 |
|
- |
