View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Control Panel
03 - Door
04 - Heater
05 - Motor & Drive
06 - Tumbler
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

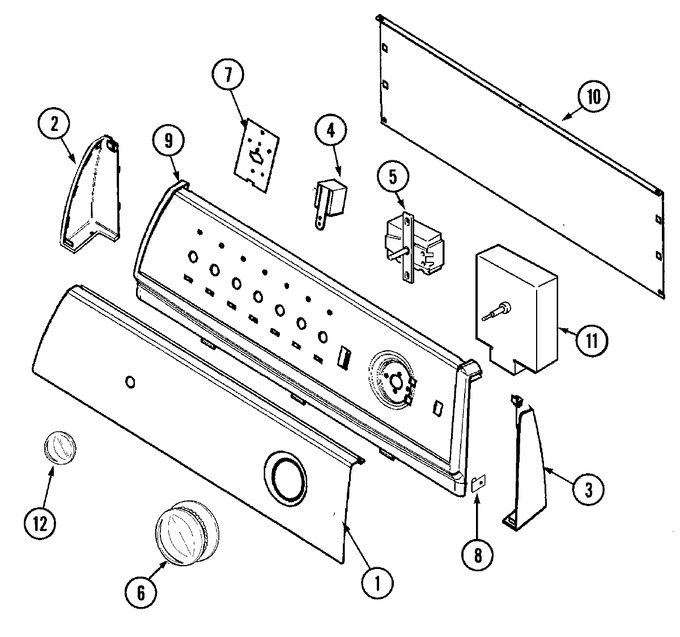

| 1 | 31001390 | Panel, Control | 10 |
|
- | ||||
| 2 | 21001519 | Endcap (wht-lt) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001523 | Endcap (wht-rt) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 5 | 31001348 | Switch, Temperature | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | WP37001184 | Knob/skirt, Timer (wht) (Replaces: 31001385) | 10 |
|
Immediately | $ 51.24 | |||
| 7 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 7 | 53-2504 | Spacer, Control Shield | 10 |
|
- | ||||
| 7 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 8 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 9 | 21001604 | Frame, Control Panel (wht) | 10 |
|
- | ||||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 63-6743 | Resistor Assy. | 10 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | WP53-1810 | Timer (Replaces: 53-1810) | 10 |
|
$ 340.09 | ||||
| 12 | 21001525 | Knob, Selector (wht) | 10 |
|
- | ||||
| 13 | 16008334 | Manual, Srvc Dryer-no Refund | 10 |
|
- | ||||
| 13 | 16009627 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | 21001419 | Manual, Laundering Tips | 10 |
|
- | ||||
| 15 | 12002417 | Wire Kit (herrin Laundry) | 10 |
|
$ 26.25 |
