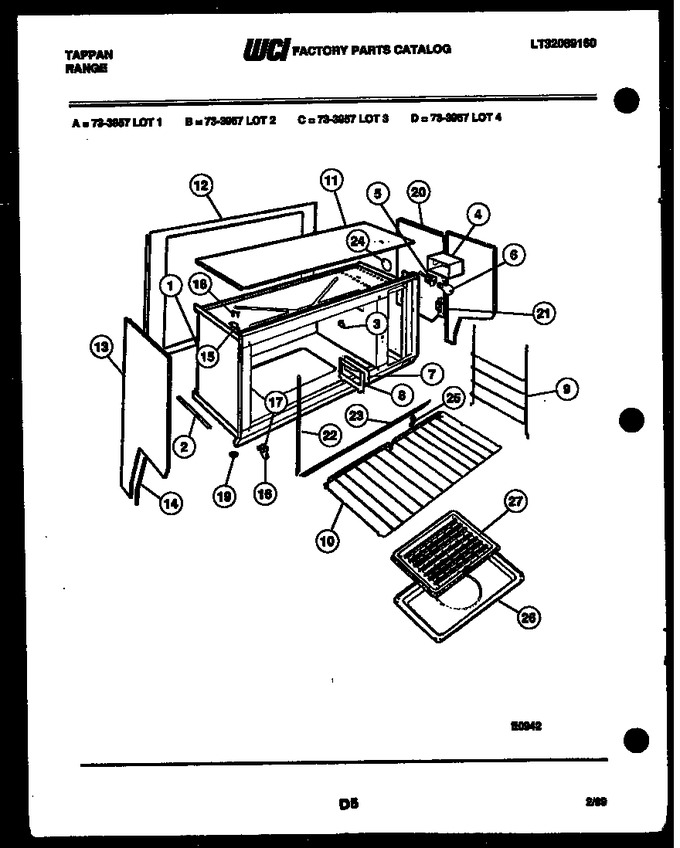

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	088T268F01		Angle-stiffener		Appelez-nous	-
3	145T025P01		Clip, Cap Bulb (2)				$ 1.76
4	069T046F01		Box, Light		Appelez-nous	-
5	3014073		Socket-light		Appelez-nous	-
6	374T018P05		Light Bulb		Appelez-nous	-
7	277T162P01		Lens, Oven Light		Appelez-nous	-
8	174T112F01		Cover, Lens		Appelez-nous	-
9	280T021P01		Glide-oven Rack (2)		Appelez-nous	-
10	591T042P01		Rack, Oven		Appelez-nous	-
11	3131625		Panel-top		Appelez-nous	-
12	3051236		Back-oven Wall Upper		Appelez-nous	-
13	3051263		Panel-bodyside Rh-white		Appelez-nous	-
13	3051260		Panel, Bodyside, Lh (white)		Appelez-nous	-
14	740T309F01		Trim, Lh		Appelez-nous	-
15	3131613		Hinge-top		Appelez-nous	-
16	3051166		Hinge, Bottom		Appelez-nous	-
17	554T176F01		Plate, Hinge		Appelez-nous	-
18	636T087P01		Screw 10-32 Shoulder Special (2)		Appelez-nous	-
19	789T052P01		Washer, Hinge (2)		Appelez-nous	-
20	3131679		Shield-wool (side)		Appelez-nous	-
21	131T009P03		Catch, Door		Appelez-nous	-
22	647T081P06		Seal-door-sides (2)		Appelez-nous	-
23	647T081P05		Seal-door Top And Bottom (2)		Appelez-nous	-
24	3131610		Cover, Outlet Hood		Appelez-nous	-
25	691T007P01		Strike, Door		Appelez-nous	-
26	539T001F02-86		Broiler Pan		Appelez-nous	-
27	319T010F03-86		Insert-broiler Pan		Appelez-nous	-
14A	740T309F02		Trim, Rh		Appelez-nous	-
2A	328T045P01		Insulation-bottom 1 1/2 X 13 X 22 1/2 (non-illustrated)		Appelez-nous	-
2B	328T018P33		Insulation-top 3 X 12 1/2 X 24 (non-illustrated)		Appelez-nous	-
2C	328T061P01		Insulation-back And Side 2 X 6 X 50 (non-illustrated)		Appelez-nous	-
